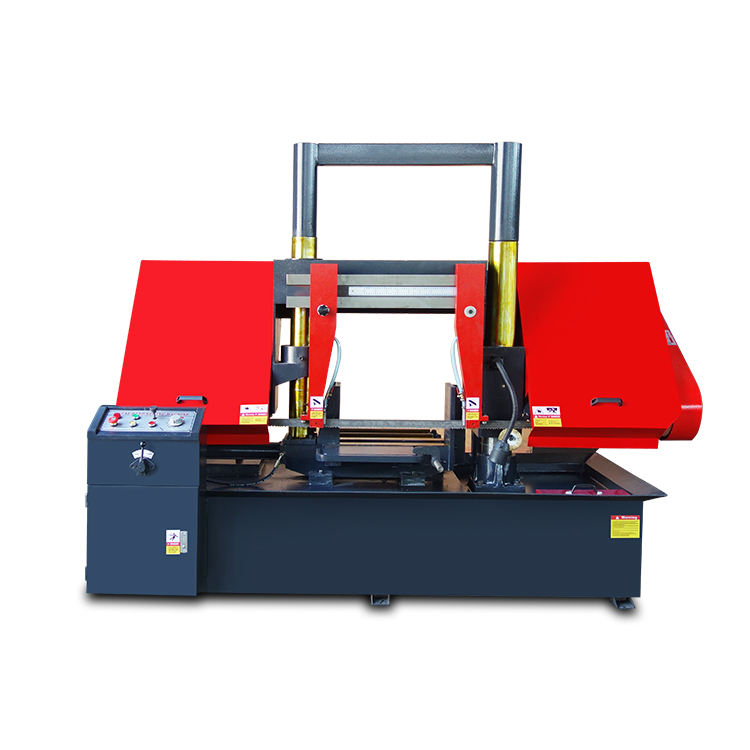

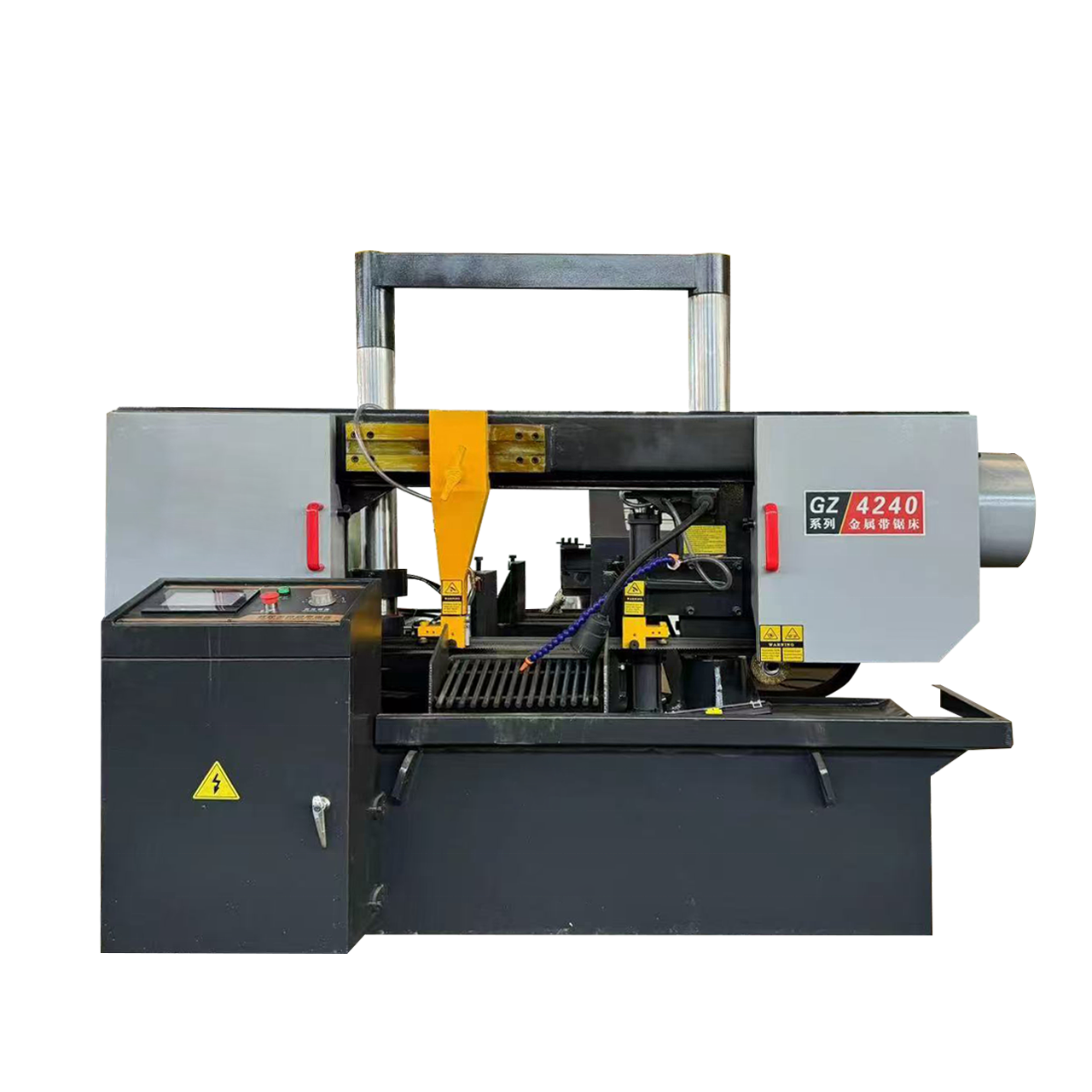

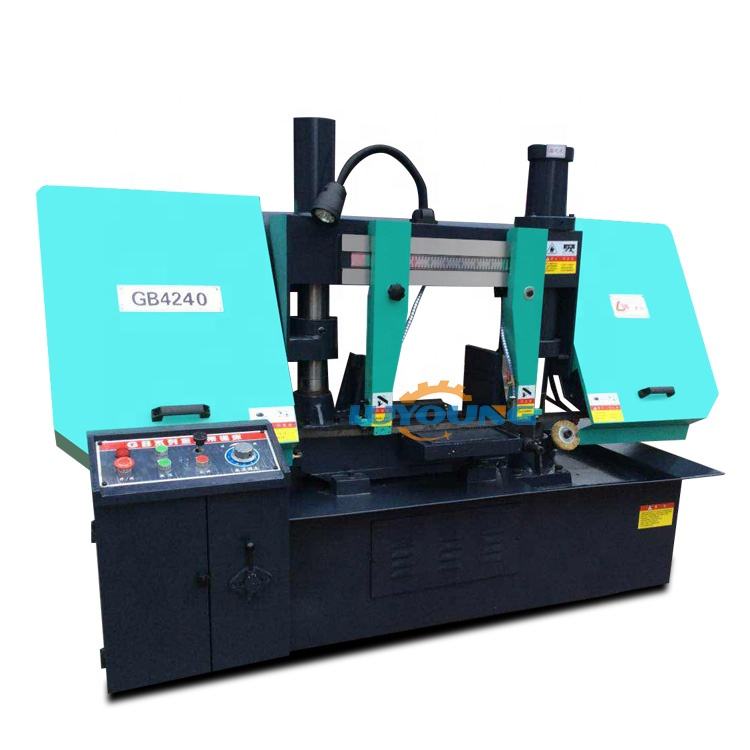

GB4240 Gantry Double Column Cutting Band Sawing Machine
No content added
Introduction
Specification
| Model Name | GB4240 | GB4250 | |
| Max.cutting | 400-400×400m | 500-500×500mm | |
| Saw blade | Size | 5000×41×1.3mm | 5800×41×1.3mm |
| Speed | 27,45,69m/min | ||
| Guides | Carbide and bearing blade guides | ||
| Cleaning | Power wire brush & flood coolant | ||
| Tension | Manual | ||
| Motor output | Blade | 4kw | 5.5kw |
| Hydraulic | 1.5kw | 1.5kw | |
| Coolant | 0.09kw | 0.09kw | |
| Work feeding | Manual | ||
| Work Vice | Hydraulic | ||
| Machine size(mm) | 2380×1350×1950 | 2500×1550×2200 | |
| Machine Weight(kg) | 1400 | 1600 | |
Product Description

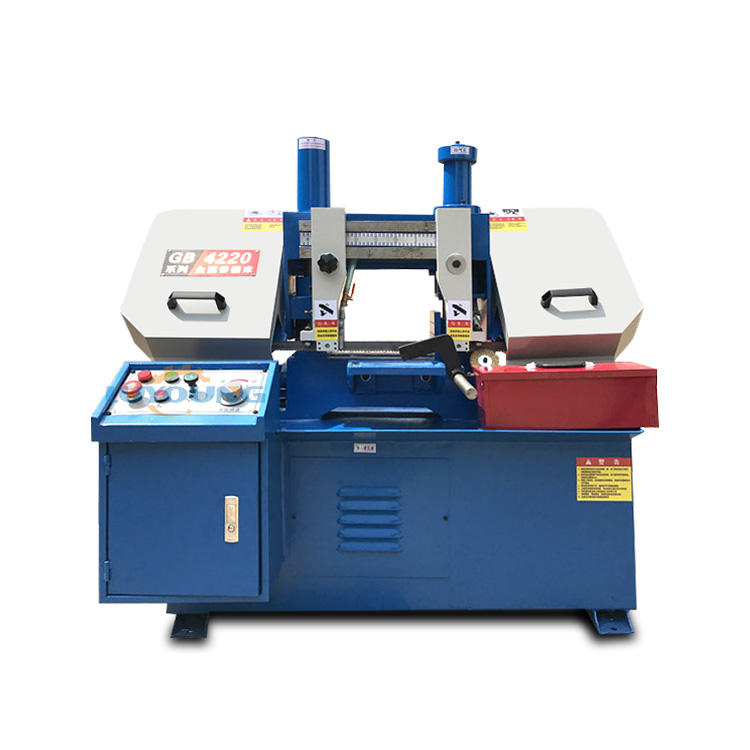

Ce supplied factory Excellent Quality Horizontal Bandsaw Machine GB4220/4230/4235/4240/4250 Gantry Angle Cutting Band Sawing Machine
1. Product selection services, you can give us your workpieces or drawings, then our Professional team will choose the most suitable model for you.
2.Flexible configuration, you tell us your request then we design and produce it.
3.Free training, we supply free training online or at our workshop.
4.Free technical support, including machine brochures, machine inspection certificate, precision inspection book, machine foundation diagram , standard machine tools .
5.7×24 hours service, listen in time and handle your feedback within 24 hours.
