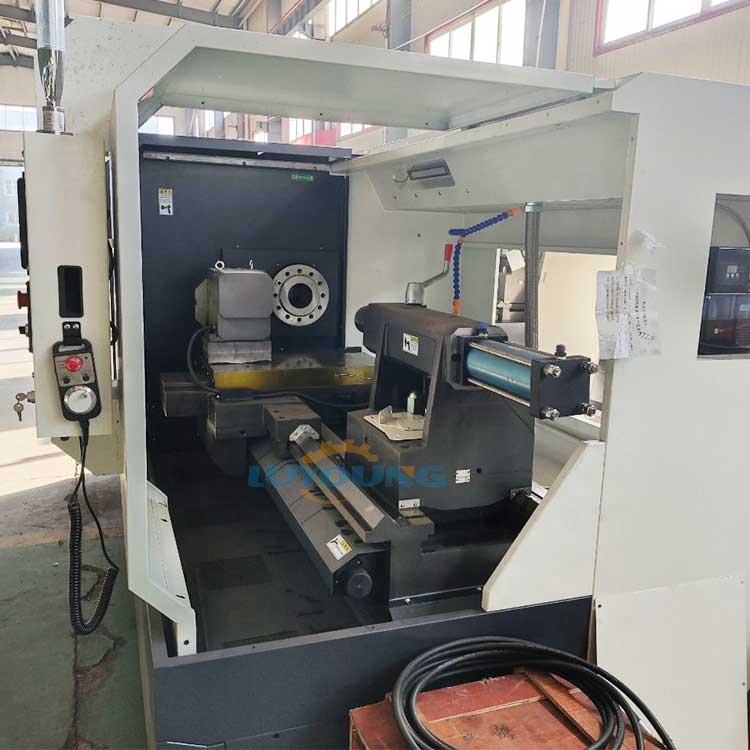

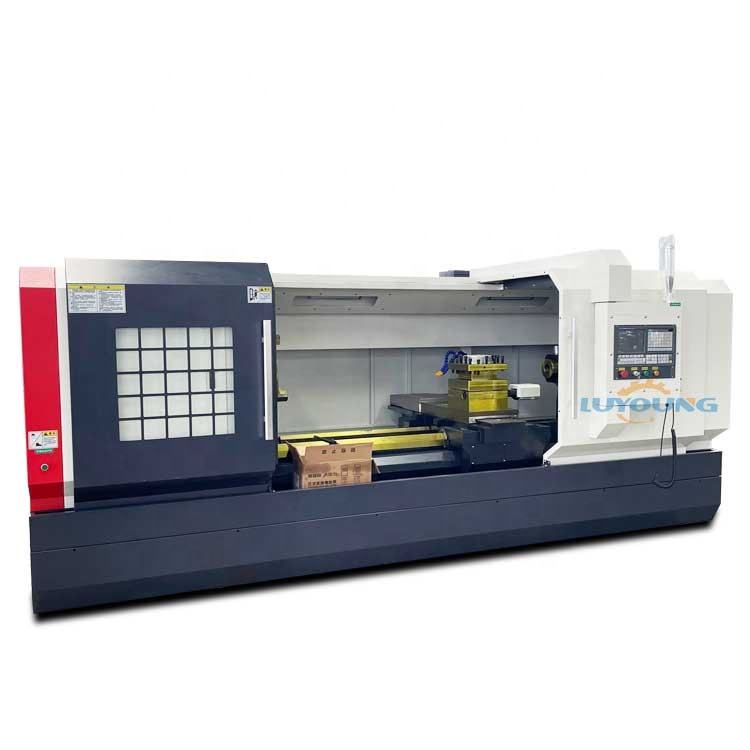

Ck61100 China 1500/2000/5000mm Heavy Duty Cnc Horizontal Metal Lathe Machine with Siemens Controller System
Introduction
ck61100 china 1500/2000/5000mm heavy duty cnc horizontal metal lathe machine with Siemens controller system
1.The whole machine adopts laser interfer-ometer to detect, effectively guarantee the positioning accuracy of Z axis and X axis,repeated positioning accuracy, backlash and machine tool stabllity.
2.The machine headstock and bed, tailstock, pallet . and other joint surfaces are scraped by hand.
3.The main drive is three gears stepless frequency conversion speed regulation. Its gears are all hardened and ground, and strong oil lubrication cooling function,they have good high-speed and low-temperature performance; the design of the headstock box has heat dissipation and shock absorption effects, and its noise is low, high precision.
4.The bed foot of the bed is casted with resin sand, aging treatment, the guide rail is subjected to super audio frequency quenching, and the whole grinding process has good accuracy.
| Max. swing over bed (mm) | φ800 |
| Max. swing dia. over cross slide(mm) | φ500 |
| distance between two centers(mm) | 1000/1500/2000/3000mm |
| Form | Four gears No grade to change frequency |
| Range of spindle speed(r/min) | 25-850 rpm |
| The spindle terminal structure | C11 |
| Diameter of spindle bore (mm) | φ105 |
| The taper of spindle front-end | (Metric)120 1:20 |
| Power of main motor (KW) | 11KW |
| Processing accuracy(mm) | IT6-IT7 |
| Surface roughness | Ra1.6 |
| Sleeve diameter of tailstock (mm) | φ100 |
| Sleeve travel of tailstock (mm) | 250 |
| Cone hole taper of tailstock’s sleeve | MT6 |
| Standard configuration | Four-station vertical electrical knife rest |
| Restting accuracy (mm) | 0.007 |
| Length of section of knife handle (mm) | 30×30 |
| Length*width*height | 3300/3800/4300/5300×1940×1800mm |
| Net weight (Kg) | 4200 |
| Standard configuration: | Option configuration: |
| GSK controller system | 12 station hydraulic servo turret |
| Manual 3 jaw chuck | Auto feeder system |
| Auto lubrication system | Pneumatic chuck |
| Lighting system | Hydrualic chuck |
| Cooling system | Chip conveyor |
| 4 station tools carrier | |
| 380V 3 phase(if your local have special request pls let us know) | |
