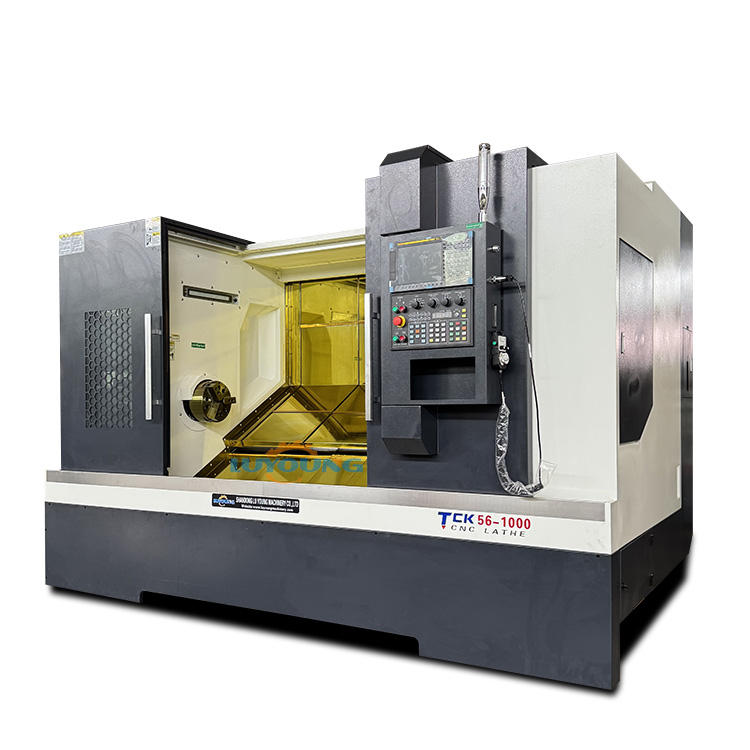

Slant bed cnc lathe machine

What’s the advantage of High Accuracy Automatic Slant Bed Machine TCK56 750/1000mm Metal Turning Center Driven Turret?

♠ Spindle: The spindle is of high rigidity and high speed structure, which can realize stepless speed change and constant linear speed cutting and high speed cutting;

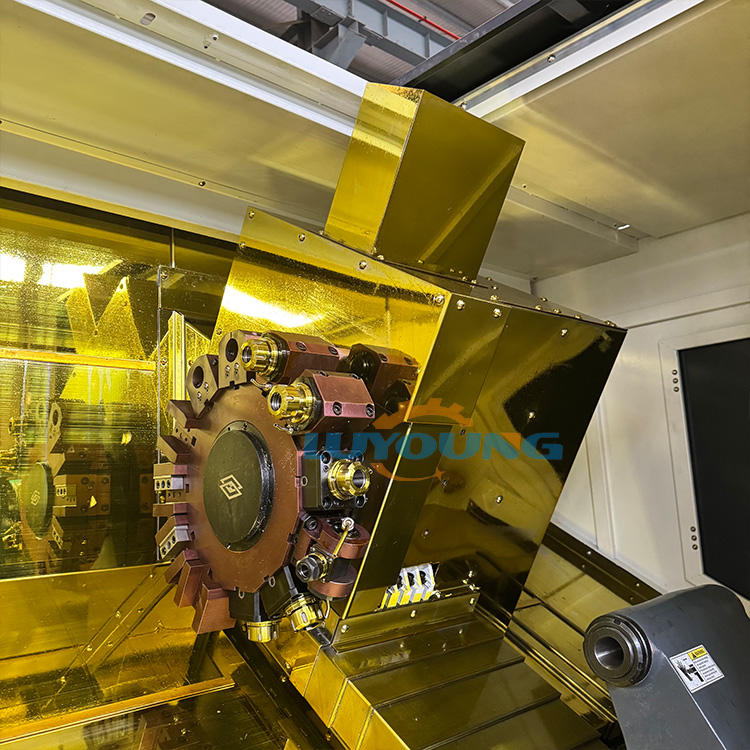

♠ Turret:Equipped with a high-performance hydraulic tool post, with good rigidity, accurate tool change and fast speed, and high reliability, which can improve the processing efficiency of the machine tool;

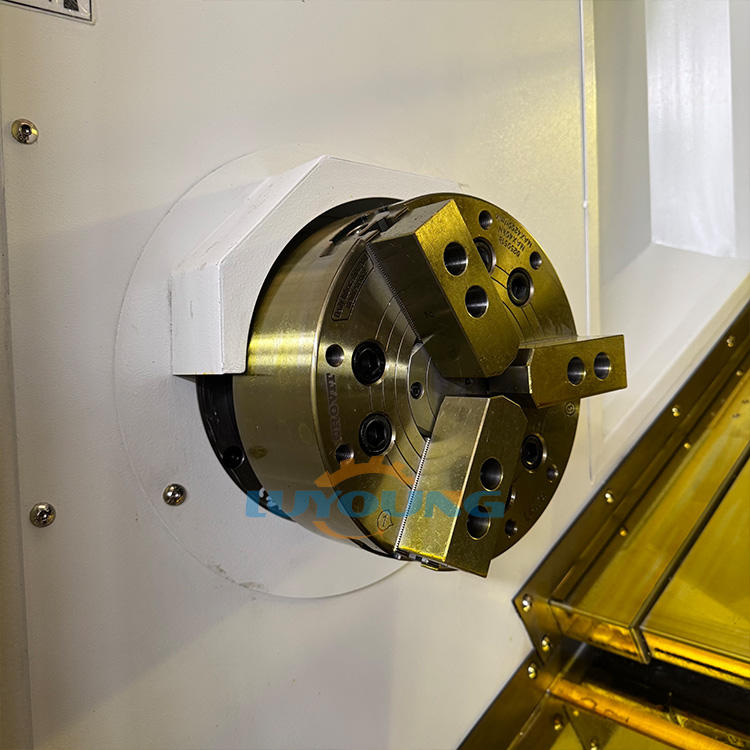

♠Chuck:The standard type is equipped with a hydraulic chuck with high efficiency and stable accuracy. The sleeve chuck can also be installed according to the user’s requirements, which is convenient to clamp the workpiece and reliable in work;

♠ Controller system:CNC system Siemen808D controller syste; optional new generation, GSK, FANUC

♠ Linear guide way:Using Taiwan Hiwin linear guide, the machine tool bears a large load, has a good dynamic response, eliminates low-speed crawling, and has good accuracy.

♠ Casting:The use of a high-rigidity horizontal cast iron bed, combined with a 45-degree Z-direction sliding table, and an optimized design of a large triangular headstock, greatly improve the rigidity of the spindle.

Specification		Unit	TCK56
Work Capability	Max swing over bed Dia.	mm	Φ650
	Max swing over the cross slide Dia.	mm	Φ280
	Max cutting length	mm	540
	Max turning diameter	mm	Φ540
Spindle	Hydraulic chuck size	mm	10”
	Spindle nose	/	A2-6
	Spindle taper/diameter	mm	Φ 66
	Spindle speed	r/min	20-3500
	Main motor power	kW	11
Tail stock	Tail stock sleeve dia./travel	mm	480
	Sleeve taper	MT No.	MT-5
Body	Bed angle	DEG	45 °
	Travel range for  X/Z	mm	280/750
	Fast feeding speed X/Z	m/min	24/24
	Servo motor torque X/Z	Nm	15/15
	Servo motor power	kw	2./2.3
Turret	Nos.	/	12
	Tools size	mm	25×25/Φ32
	Y axis travel range	mm	+_50
	Dimension size	cm	3400x2060x2100
	Weight	kg	4200
