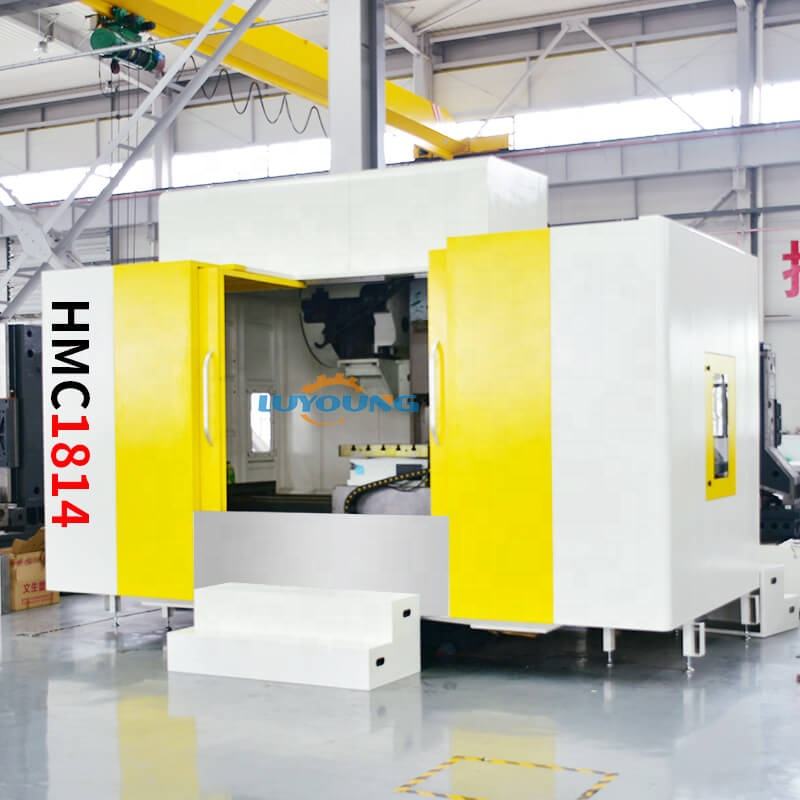

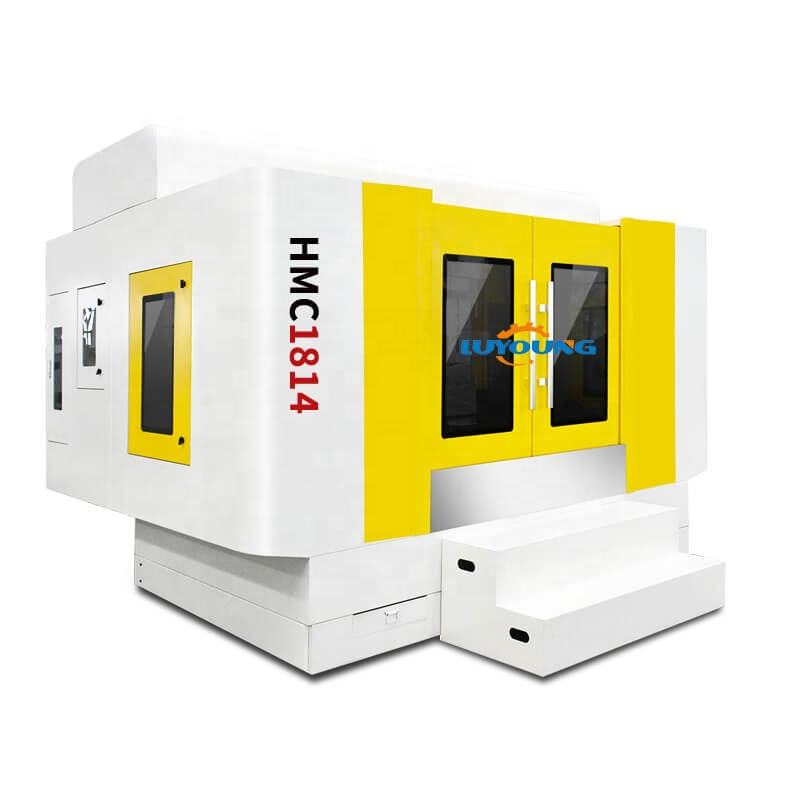

HMC1814 Heavy Duty Horizontal CNC Milling Machine China Factory Price 24-Arm ATC Taiwan High-Accuracy Machining Center
No content added
Introduction
HMC1814 Heavy Duty Horizontal CNC Milling Machine China Factory Price 24-Arm ATC Taiwan High-Accuracy Vertical Machining Center.This machine tool can be used for precision machining of aerospace, automobiles, internal combustion engines, home appliances, and general machinery. It has good performance in completing the box hole system and plane processing during clamping, and is especially suitable for the turning and boring processing of box holes.
| Description | HMC1075 | HMC1290 | HMC1395 | HMC 1814 |
| Worktable size(mm) | 1300×600 | 1360×700/ 630*630 rotary table | 1400×700/ 630×630 rotary table | 2000×900/ 800*800 rotary table |
| Max loading weight on worktable( KG) | 800 | 1000 | 1000 | 1600 |
| T-slot（pieces-width-distance）(mm/piece) | 5-18-105 | 5-18-122 | 5-18-130 | 5-22-165 |
| X axis travel (mm) | 1000 | 1200 | 1300 | 1800 |
| Y axis travel (mm) | 750 | 800/600 | 800 | 1280 |
| Z axis travel (mm) | 600 | 700 | 750 | 900 |
| Distance from spindle end face to worktable center distance (mm) | 115-715 | 180-880 | 168-918 | 200-1100 |
| Distance from spindle center to worktable (mm) | 110-860 | 140-940 | 260-1060/0-800 | 140-1420 |
| Spindle taper (7:24) | BT 50 φ150 | BT 50 φ190 | BT 50 φ190 | BT 50 φ190 |
| Spindle speed (r/min) | 6000 | |||
| Spindle motor (kW) | 11 | 15 | 15 | 15 |
| X axis Rapid feeding speed(m/min) | 15 | 20 | 15 | 18 |
| Y axis Rapid feeding speed (m/min) | 12 | 12 | 12 | 12 |
| Z axis Rapid feeding speed (m/min) | 15 | 20 | 15 | 18 |
| Feed speed (m/min) | 1-10000 | |||
| Auto Tool changer design | arm type auto tool changer | |||
| Auto Tool changer capacity (piece) | 24 | |||
| Tool changing time(tool-to-tool) s | 2.5 | |||
| Accuracy test standard | JISB6336-4：2000/ GB/T18400.4-2010 | |||
| X/Y/Z axis accuracy (mm) | ±0.008 | |||
| X/Y/Z axis Repeat positioning accuracy (mm) | ±0.005 | |||
| Overall size（L×W×H）(mm) | 3700×3050×2700 | 3750×3400×2900 | 3600×3400×2900 | 4800*3800*3450 |
| Gross weight (kg) | 8000 | 10000 | 10000 | 15000 |
Main configuration:
| Name | specifications | manufacturers | place of origin |
| Cnc control system | KND2000MF3i/HNC808DM | KND/Huazhong | Beijing/Wuhan |
| Servo drive and motor | System matching | KND/Huazhong | Beijing/Wuhan |
| Three axis bearing | Inside diameter 40, outside diameter 72 | SKF/NACHI | Switzerland/Japan |
| Three-axis ball screw (C3 grade) | X/Z:FD4012;Y:FD5010 | NMC/TEC | Taiwan |
| Three axis guide | X/Y:HGH45HA ; Z:HGH55HA; | HIWIN/ROLLON | Taiwan |

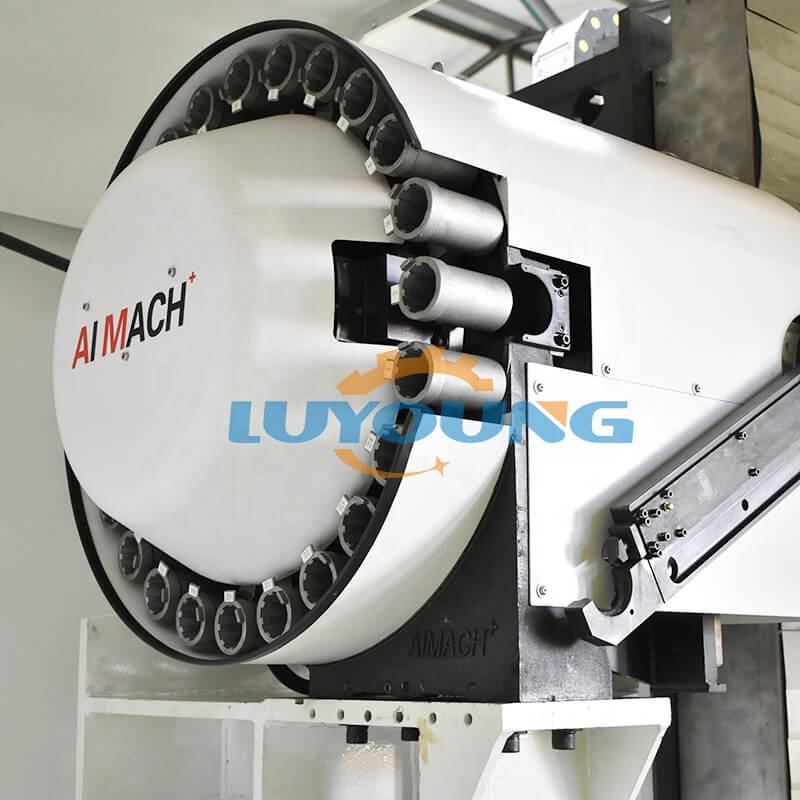

| tool changer | 24 arm type auto tool changer | OKADA/RELIB/DEX | Taiwan |
| belt type spindle | BT50-150-6000r/min | Volis/National Taiwan University/Okada | Taiwan |
| Booster Cylinder | 4.5T | Volis | Taiwan |
| Outer protective cover | 3700×3050×2700 | China | |
| 3 AXIS telescopic protection | Steel plate type | China | |
| pneumatic device | AIRTAC | Taiwan | |
| pressure switch | SMC | Japan | |
| cooling pump | CBK4-30/3 | Rocoi | Taiwan |
| Machine tool heat exchanger | HPW-10AF | China | |
| Main electrical components | Schneider/Delixi | France/China | |
| connection terminal | WAGO | Germany |
