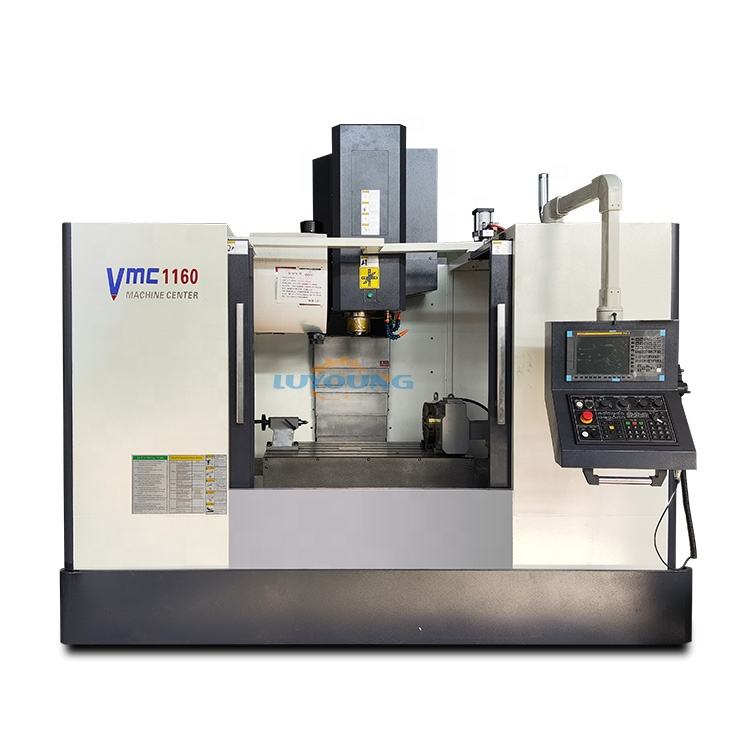

March Expo CNC Milling Machine With Certificate /CNC Vertical Machining Center VMC 1160/CNC Milling Machine
Introduction
cnc machining milling turning parts cnc VMC1160 machine cnc milling machine for metal 3/4/5 axis composed of mechanical equipment and numerical control system. Is an automated machine that is suitable for efficient machining of complex parts. CNC machining center is the world’s highest yield, the most widely used one of the CNC machine tools. Its comprehensive processing capacity is strong, the workpiece can be completed after a single processing content, processing accuracy is higher, the middle of the difficulty of the bulk of the workpiece, the efficiency of ordinary equipment is 5 to 10 times, in particular, it can be completed Many ordinary equipment can not be completed processing, the shape of the more complex, high precision single-piece processing or small and medium-sized multi-species production is more applicable.Specification of
CNC Milling Machine With Certificate /CNC Vertical Machining Center VMC 1160/CNC Milling Machine
| Items | Details | Unit | VMC1160 |
| Table | Size | mm | 1200×600 |
| Travel of 3 axis（X/Y/Z) | mm | 1100/600/600 | |
| Max, table load | kg | 1000 | |
| T-slot | Size | mm | 5-18×120 |
| Spindle | Spindle taper | BT40 | |
| Distance from Spindle center to Colum guide | mm | 650 | |
| Distance of spindle head to table | mm | 130-780 | |
| Max speed | rpm | 8000 | |
| Motor power | KW | 11/15 | |
| Accuracy | Positioning accuracy(X/Y/Z) | mm | ±0.01/±0.008/±0.008 |
| Repeatability（X/Y/Z) | mm | ±0.005 | |
| Axis motor | Power of X/Y/Z | Kw | 2.5/2.5/2.5 |
| Torque of X/Z | Nm | 16/24 | |
| Feeding speed | Rapid feed of X/Y/Z | m/min | 36/36/24(linear guide way) |
| Cutting feed of X/Y/Z | m/min | 10 | |
| Weight | Kg | 7800 | |
| Dimension | mm | 3300*2800*2700 | |
| Power | V | 3 phase 380V |
