Introduction
High Precision Slant Bed GSK Controller System Cnc Lathe TCK50 *500 Metal Turning CNC Lathe with Living Turret

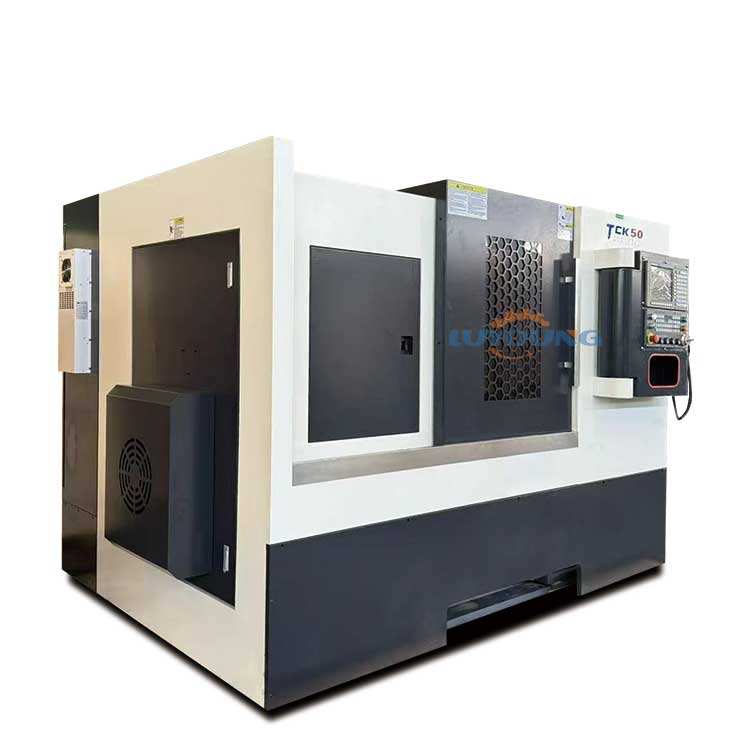

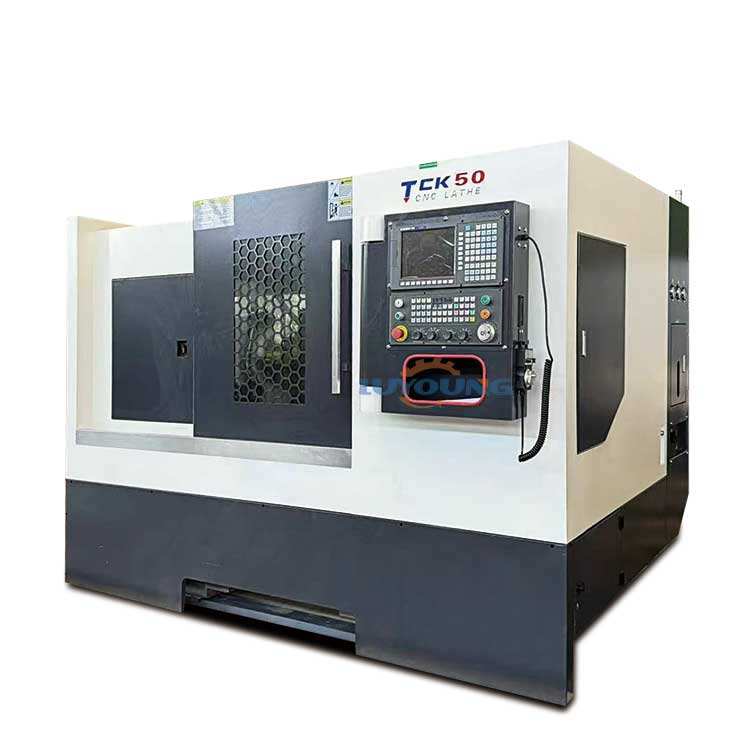

The TCK50 series multi-function CNC lathe is a high-speed precision CNC machining equipment produced by our company using Japanese technology. The main accessories are made from well-known domestic and foreign manufacturers. The key components are completed by imported precision pentahedral machining centers to ensure manufacturing accuracy.
Specification of High Precision Slant Bed GSK Controller System Cnc Lathe TCK50 *500 Metal Turning CNC Lathe with Living Turret ：
| Item | Model | TCK50 |
| Working Range | Max. swing diameter over bed（mm） | Φ550 |
| Max. cutting diameter（mm） | Φ440 | |
| Max.cutting length（mm） | Φ450 | |
| Machine travel and feed | X/Z axis travel（mm） | 250/500 |
| X/Z axis movement speed(mm/min) | 24000 | |
| Handwheel（mm） | 0.001/0.01/0.1 | |
| X、Z axis feed speed（mm/min） | 0~5000 | |
| X、Z axis manual feed speed（mm/min） | 0~1260 | |
| Accuracy | X/Z axis repositioning accuracy(mm) | 0.005/0.006 |
| X/Z axis positionaI accuracy(mm) | 0.01/0.015 | |
| Spindle | Spindle speed (rpm) | 35-3000 |
| Max. spindle torque （N.m） | 48 | |
| Spindle taper | A2-6 | |
| Spindle bore (mm) | Φ66 | |
| Bar through-hole(mm) | Φ50 | |
| hydraulic chuck | 10″ （Optional2”） | |
| Turret | Turret type | Hydraulic turret |
| Number of tool holder | 12 | |
| Tool change times(s) | 0.25 | |
| Tool mounting dimension(mm) | 25×25 | |
| Boring tool holder mounting diameter(mm) | Φ32 | |
| Tailstock travel (mm) | 480 | |
| Center taper | MT-5# | |
| Main motor | Main motor power(kW) | 7.5 (4500rpm) |
| Main motor torque （N.m） | 48 | |
| X, Z axis feed motor | X/Z axis feed motor Power (kw) | 2.3 |
| X/Z axis feed motor torque (N.m) | 15 | |
| Cooling system | Coolant capacity (L) | 200 |
| Motor type (1HP) (kw) | 0.18 | |
| Dimensions(mm) | L×W×H（mm) | 2697*1795*1860 |
| Weight | Machine weight (kg) | 3600 |
| Model | TCK56*750(Servo turret) | TCK56*750(with Y axis ) | TCK63*750 | TCK63*1000 |
| Max. swing diameter over bed（mm） | Φ560 | Φ650 | Φ650 | Φ630 |
| Max. cutting diameter（mm） | Φ540 | Φ540 | Φ540 | Φ460 |
| Max.cutting length（mm） | 580 | 540 | 540 | 1000 |
| X axis travel（mm） | 280 | 280 | 280 | 340 |
| Z axis travel（mm） | 750/1000 | 750/1000 | 750 | 1000 |
| X/Z axis movement speed(mm/min) | 24000 | 24000 | 24000 | 24000 |
| Handwheel（mm） | 0.001/0.01/0.1 | 0.001/0.01/0.1 | 0.001/0.01/0.1 | 0.001/0.01/0.1 |
| X、Z axis feed speed（mm/min） | 0~5000 | 0~5000 | 0~5000 | 0~5000 |
| X、Z axis manual feed speed（mm/min） | 0~1260 | 0~1260 | 0~1260 | 0~1260 |
| X/Z axis repositioning accuracy(mm) | 0.005/0.006 | 0.005/0.006 | 0.005/0.006 | 0.005/0.006 |
| X/Z axis positionaI accuracy(mm) | 0.01/0.015 | 0.01/0.015 | 0.01/0.015 | 0.01/0.015 |
| Max spindle speed (rpm) | 3500 | 3500 | 10-3000 | 35-3000 |
| Max. spindle torque （N.m） | 72 | 72 | 72 | 72 |
| Spindle taper | A2-6 | A2-6 | A2-8 | A2-8 |
| Spindle bore (mm) | Φ66 | Φ66 | Φ87 | Φ87 |
| Bar through-hole(mm) | Φ52 | Φ52 | Φ75 | Φ75 |
| hydraulic chuck | 10” | 10” | 8″ （Optional 10”） | 10″ （Optional 12”） |
| Turret type | Hydraulic turret | living turret | Hydraulic turret | Hydraulic turret |
| Number of tool holder | 12 | 12 | 12 | 12 |
| Tool change times(s) | 0.25 | / | 0.25 | 0.25 |
| Tool mounting dimension(mm) | 25×25 | 25×25 | 25×25 | 25×25 |
| Boring tool holder mounting diameter(mm) | Φ32 | Φ32 | Φ32 | Φ40 |
| Tailstock travel (mm) | 480 | 480 | 480 | 1130 |
| Center taper | MT-5# | MT-5# | MT-5# | MT-5# |
| Main motor power(kW) | 11 | 11 | 11 | 11 |
| Main motor torque （N.m） | 72 | 72 | 72 | 72 |
| X/Z axis feed motor Power (kw) | 2.3 | 2.3 | 2.3 | 2.3 |
| X/Z axis feed motor torque (N.m) | 15 | 15 | 15 | 15 |
| Coolant capacity (L) | 200 | 200 | 200 | 200 |
| Motor type (1HP) (kw) | 0.18 | 0.18 | 0.18 | 0.18 |
| L×W×H（mm) | 3400/3600/×2060×2100 | 3400/3600/×2060×2100 | 3400×2060×2100 | 3650*1870*2100 |
| Machine weight (kg) | 4200/4500 | 4200/4500 | 4200/4500 | 5700 |
Standard configuration of High Precision Slant Bed GSK Controller System Cnc Lathe TCK50 *500 Metal Turning CNC Lathe with Living Turret:
1.Gsk controller system

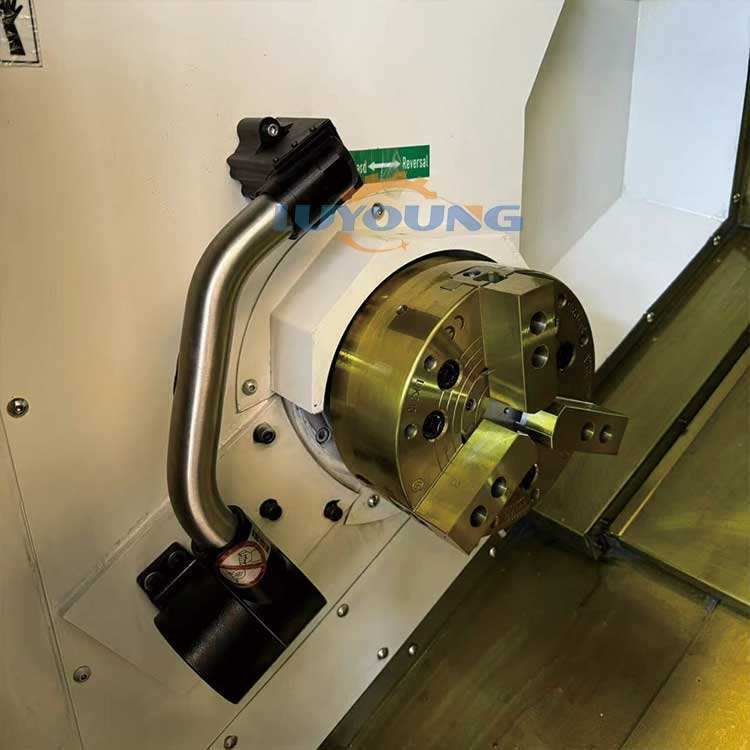

2.hydraulic hollow chuck
3.hydraulic tailstock
4.Taiwan linear guide way
8.hydraulic turret
9.high stength bed casting
10.lighting system
11.cooling system
12.auto lubrication system
13.Power distribution cabinet.
Optional configuration of High Precision Slant Bed GSK Controller System Cnc Lathe TCK50 *500 Metal Turning CNC Lathe with Living Turret :
1.Siemens/fanuc controller system.
2. 12 station living turret with or without Y axis
3.Auto bar feeder
4. Chip conveyor
5.living tool holders
6.workpiece measure system
7. Tools measure system
