MARCH EXPO Slant Bed Cnc Turning Center TCK40 Cnc Lathe Machine with Hydraulic Turret
No content added
Introduction

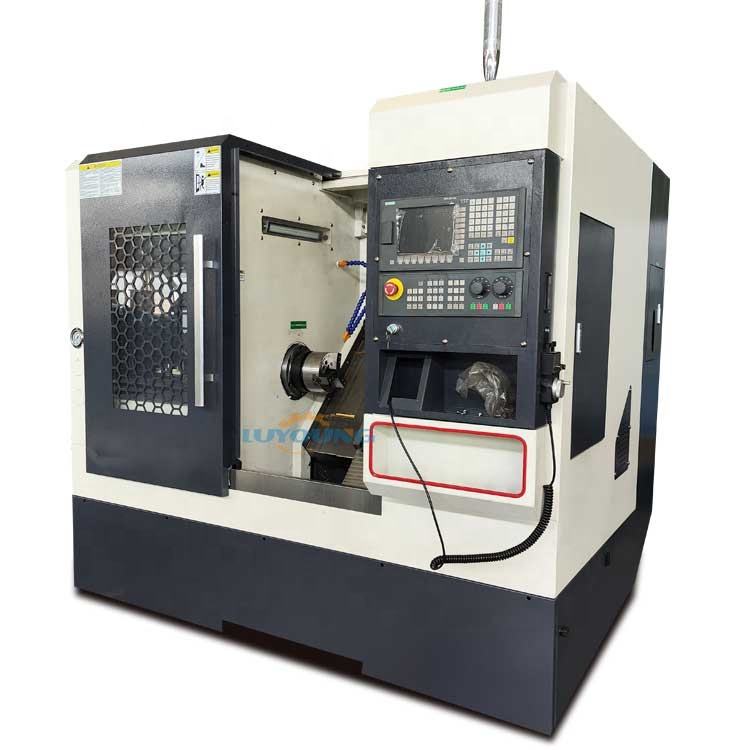

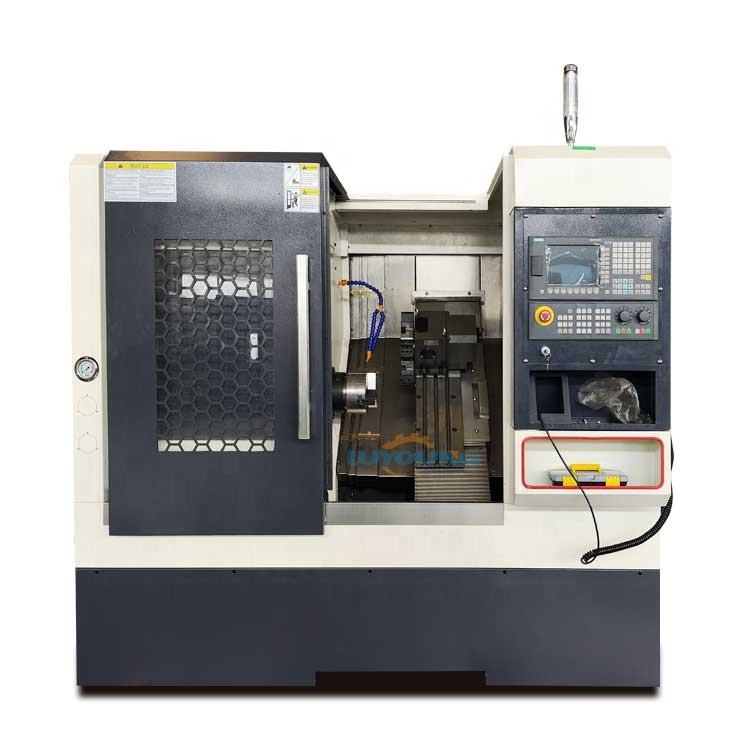

The slant bed cnc turning center TCK40 cnc lathe machine with Hydraulic turret product is a semi-closed slant-bed turning and milling machine with X, Y, Z and C axes servo control. The structure and external dimensions are compact and reasonable. The spindle (C axis) is driven by a servo motor. It can realize the turning of the outer circle, the end surface and the thread of various materials, such as shafts and discs, and various surface milling and drilling in radial and axial directions, and is suitable for efficient machining of small parts.
Specification
| Item | Model | TCK40 |
| Working Range | Max swing over bed dia. | Φ400 |
| Max swing over cross slide dia. | Φ120 | |
| Max cutting length（mm） | 400 | |
| Fast forward | X-axis rapid traverse(m/min) | 24m（3210） |
| Z-axis rapid traverse(m/min) | 24m（3210） | |
| X,Y axis travel range | X axis（mm） | 800 |
| Z axis（mm） | 420 | |
| Feeding | X axis motor torque(N.M) | 5 |
| X/Z axis linear guide way （mm） | 35/35 | |
| Z axis motor torque(N.M) | 7.5 | |
| X and Z axis connection mode | direct connection | |
| Lathe body | Gradient | 45° |
| Accuracy | PositionaI accuracy | ±0.007 |
| Repositioning Accuracy | ±0.003 | |

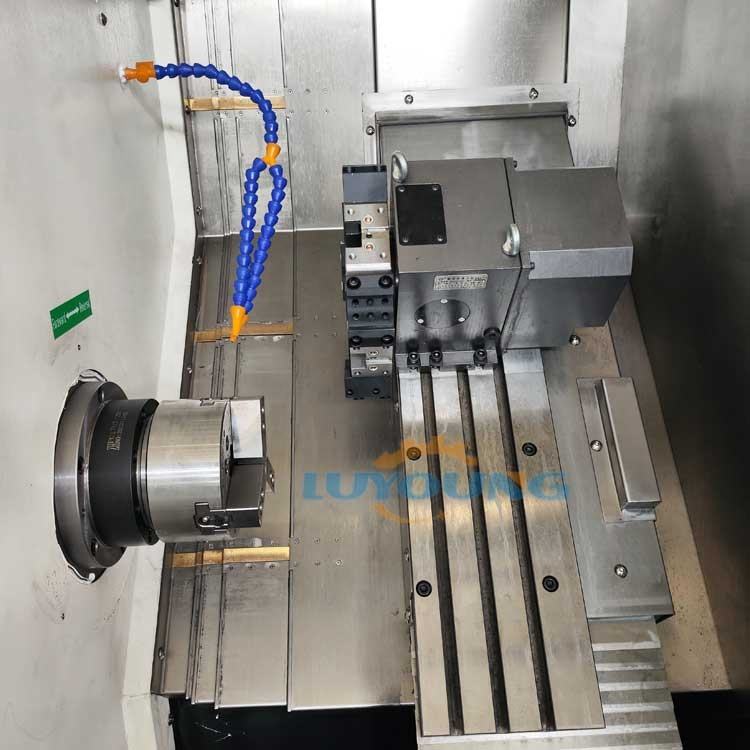

| type | Gang type tool holder | |
| Cutting tool shape size | 20×20 | |
| Sleeve spindle unit | Max turning speed（rpm） | 3000 |
| Max. spindle hole | Φ48 | |
| Spindle nose | A2-5 | |
| Spindle taper | 1:20 | |
| Main motor power(kW) | 5.5 | |
| Net Weight | 1500 | |
| Dimensions(mm) | 2100*1450*1850 | |
