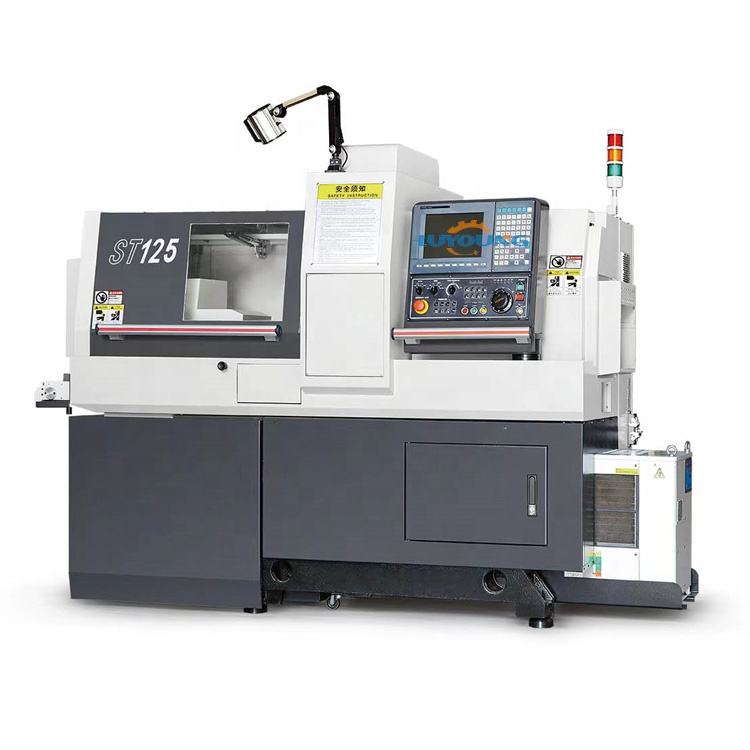

Parallel Lathe ST125 Swiss CNC Lathe for Hobby and School Training
No content added
Introduction
1. parallel lathe ST125 Swiss CNC Lathe for Hobby and School Training High-speed, high-precision, and high-efficiency: The optimal tool layout adopts high-speed arithmetic processing control to minimize the tool change time and obtain the best positioning at the same time, reducing the auxiliary time to the shortest.
2. High configuration: Concentrating the most advantageous functional components, multi-axis abundant tool configuration, and standard power tools, which greatly expands the processing range and meets the complex processing of complex parts.

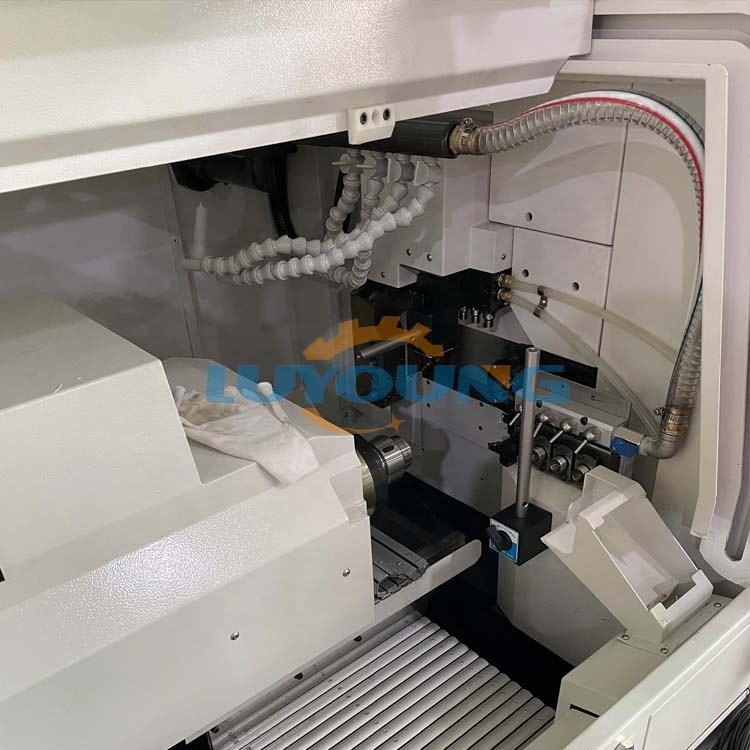

3. Convenient operation processing space: Convenient operation space, easy to change the tool, vertical downward tool can obtain the best chip removal.
Specification
| Main functional accessories | Main technical parameters | ||
| numerical control system | Taiwan Province new generation 210TB+10.4 inch LCD monitor | Maximum machining diameter | Ø12mm |
| Spindle motor | 1.5/2.2Kw built-in electric spindle | Sub-maximum feeding length degree | Guide sleeve: 120mm Without guide sleeve: 2.5D |
| Auxiliary shaft motor | 1.5/2.2Kw built-in electric spindle | lathe tool | 6x□10 |
| Side milling motor | An Chuan 750w electric machinery | Side milling power head | 1xER16+3xER11 |
| Feed motor | An Chuan 750w electric machinery | End tool holder | 5xØ22 |
| mainshaft bearing | Japan NSK, P4 bearing | Back end cutter | 4xER16 |
| Synchronous guide sleeve bearing | Japan NSK/NACHI, grade P4 bearing | Maximum spindle speed | 10000RPM |
| Ball screw | Taiwan Province HIWIN/PMI.C3 grinding screw rod | Maximum speed of auxiliary spindle | 10000RPM |
| Screw bearing | Japan NSK/NACHI special bearing for screw rod | Fast moving speed | X1/Y1/Z1/Z2:32m/min X2:24m/min |
| Linear guide | Taiwan Province HIWIN/PMI.P grinding guide rail | positioning accuracy | ≤0.005 |
| pneumatic system | Japan SMC+ Taiwan Province Yadeke | Repetitive positioning accuracy | ≤0.0025 |
| lubrication system | Intelligent valley | C-axis indexing | 0.001 degrees |
| Electric cabinet system | Independent electric cabinet | Spindle through hole | Ø13mm |
| electrical element | Omron/Schneider | Machine tool size | 2100*1100*1685 |
| Synchronous belt | UNITTA Japan | Machine tool weight | 1900 |
