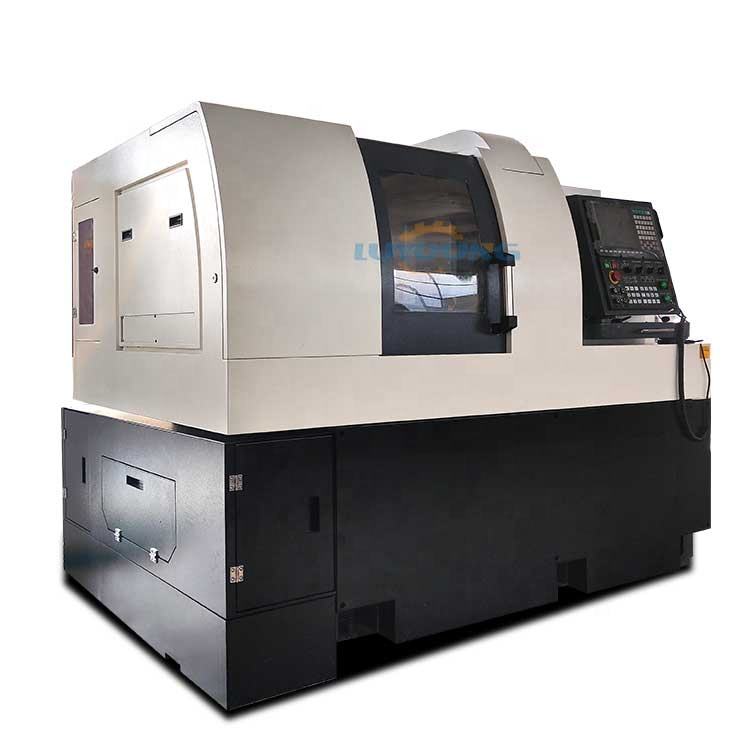

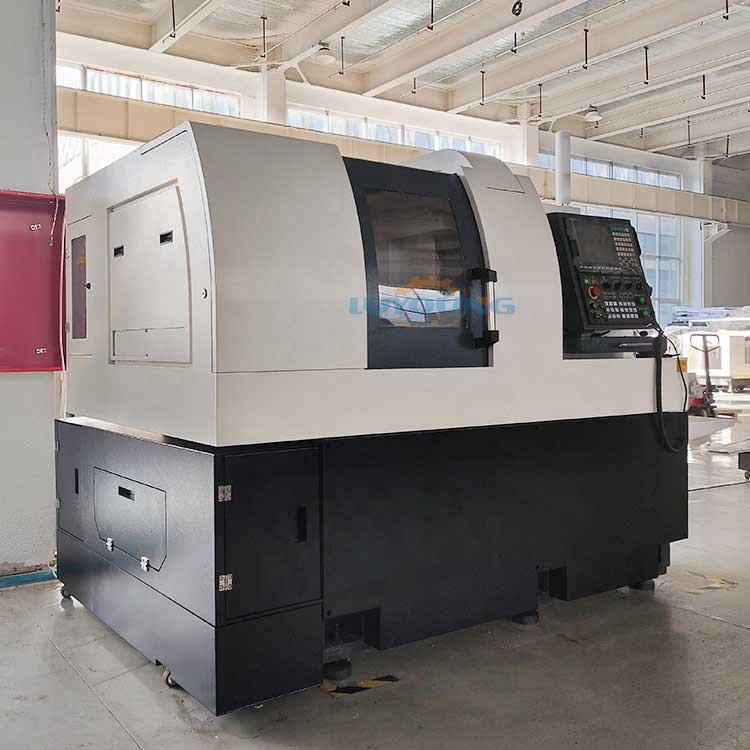

swiss lathe cnc horizontal type with bar feeder sm325 swiss type cnc lathe for dental implant vice spindle, belonging to the turning and milling compound model. The biggest feature is the workpiece after a clamping can be achieved complete processing, reducing the number of equipment required, but also improve the production efficiency. After cutting off the parts, the sub-spindle grips the part and completes the machining on the back, such as drilling, boring and milling on the back.
Items
SM325
Machine
Max. RPM
Main10,000/Sub8,000rpm
Stroke
280mm
Additional positive brake
1/1000°
Rapid traverse rate
32m/min
Tooling
O.D Tools
6EA
Front work tools
5
Cross driven tools
4
Back work tools
4
Eccentricity tools
3
NC
Specification
FANUC 0i-TD
Controllable axes
7 axis/4axis
LCD
10.4” MONO
Motor
Main spindle
5.5/7.5kw
Sub spindle
1.5/2.2kw
Cross drill
0.55/1.1kw
Back end
1.0kw
Servo
1.0kw
Coolant
0.9kw
Lubrication
5w
Others
Coolant tank capa.
200L
Lubrication tank capa.
1.8L
Center height
1,000mm
Weight
3800kg
Thesize(length*width*height)
2200×1477×1660
NO
Name
Number
Background Edit
1 set
Absolute / incremental editor
1 set
X-axis diameter / radius input
1 set
Constant surface speed control
1 set
Direct input of tool offset value
1 set
Single fixed cycle
1 set
Compound Fixed Cycle
1 set
Tip arc compensation
1 set
Metric / inch conversion
1 set
Graphic display
1 set
USB socket
1 set
Processing time / quantity that represents the capabilities
1 set
Main/Sub Spindle Cs-axis control \ indexing locking device locking device
