TCK630 Slat Bed Heavy Duty C Axis Y Axis Metal Combo Cnc Lathe and Milling Combo Machine with Living Turret
No content added
Introduction
The TCK630 slat bed heavy duty C axis Y axis metal combo cnc lathe and milling combo machine with living turret machines CE with X, Y, Z and C axes servo control. The structure and external dimensions are compact and reasonable. The spindle (C axis) is driven by a servo motor. It can realize the turning of the outer circle, the end surface and the thread of various materials, such as shafts and discs, and various surface milling and drilling in radial and axial directions, and is suitable for efficient machining of small parts.
Specification of TCK630 slat bed heavy duty C axis Y axis metal combo cnc lathe and milling combo machine with living turret.
| TCK630 slant bed cnc lathe machine | |
| CNC Controller | Siemens 808D |
| Max swing over bed dia. | Φ650 |
| Max cutting Diameter | Φ630 |
| Max swing over crosslide dia. | Φ400 |
| Max cutting length | 1000 |
| Distance between two center | 1320 |
| Spindle nose | A2-8 |

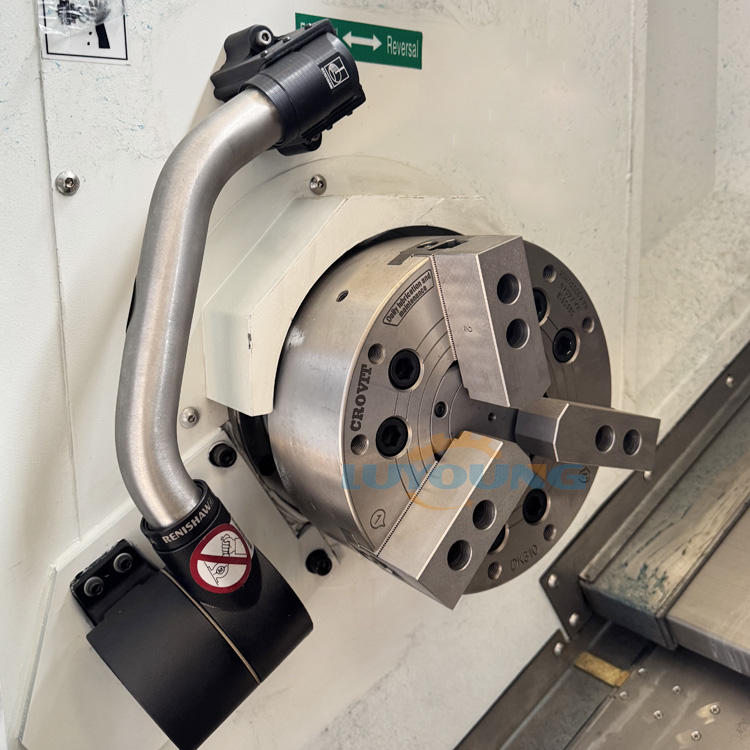

| Clamping | 12” Hydraulic Chuck |
| Main motor | 11KW |
| Spindle speed | 3000rpm |
| Spindle hole diameter | Φ82 |
| Bar through the spindle hole | Φ72 |

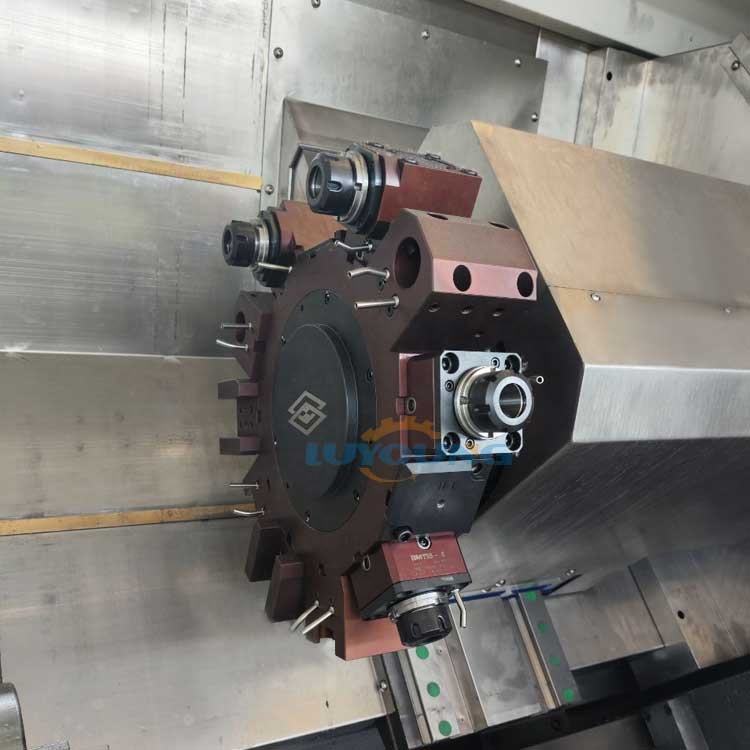

| Turret | 8 station hydraulic turret |
| Quill Diameter | Φ100 |
| Sleeve travel | 120 |
| Tail stock travel range | 1250 |
| Tailstock Quill taper | MT5 |
| Dimension | 3170×1180 x1700 |
| Weight | 6000kg |
