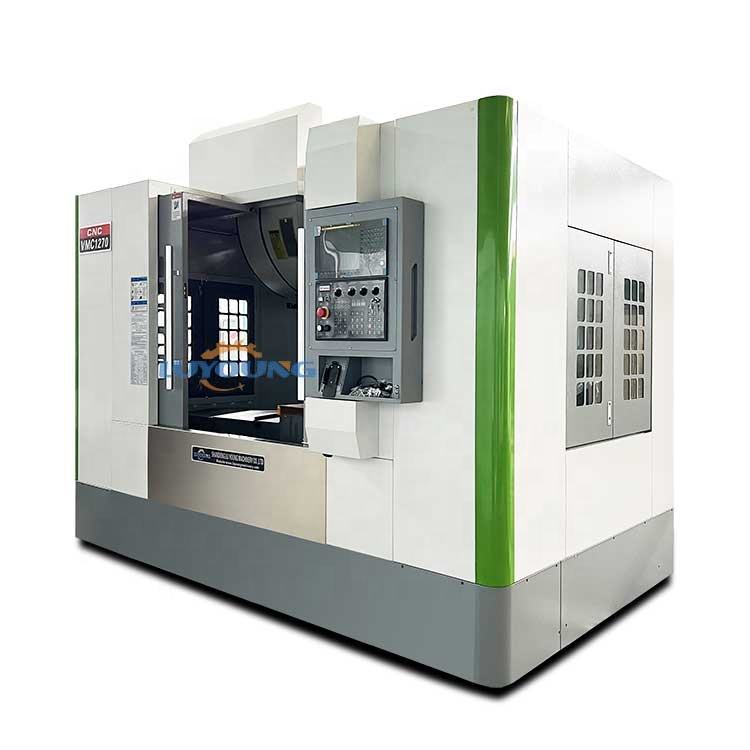

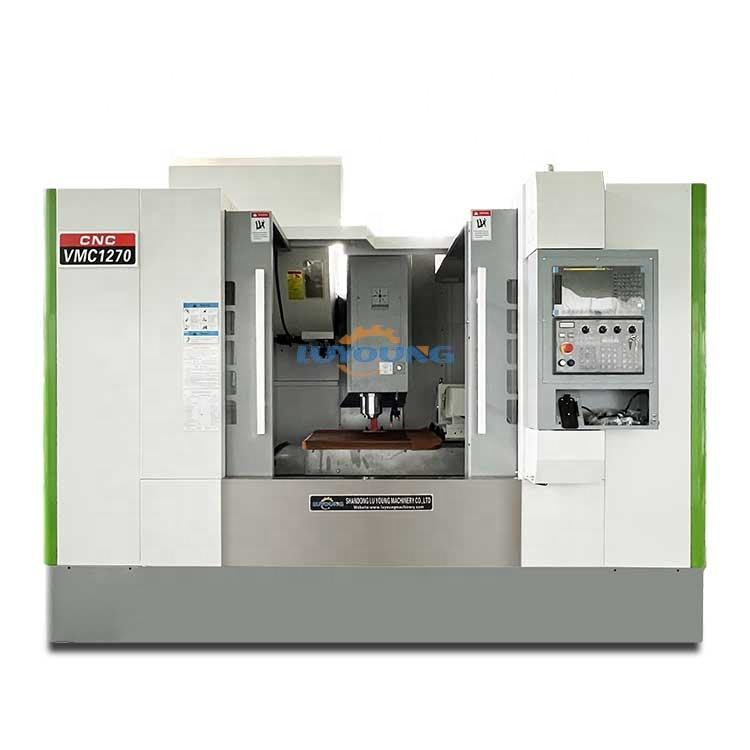

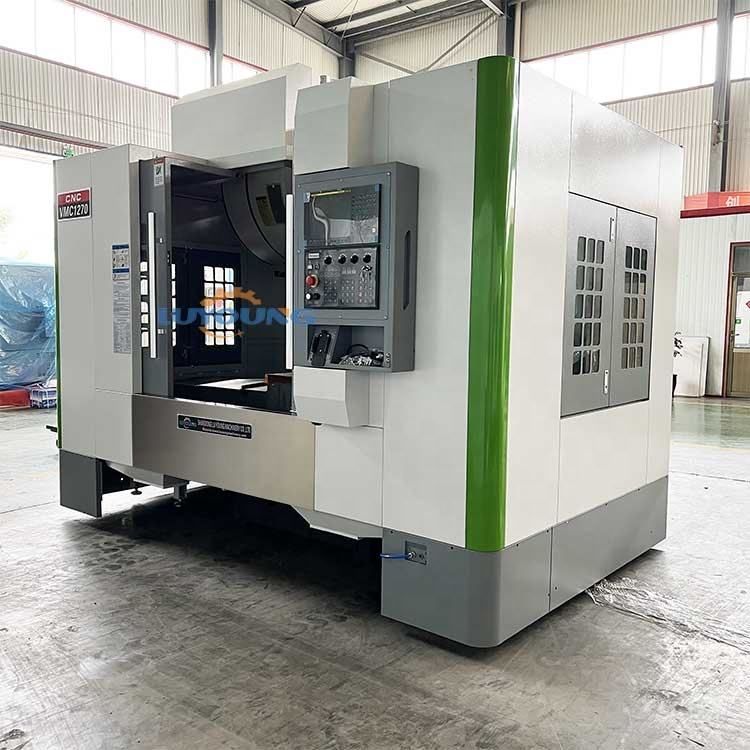

VMC1270 China 3/4/5 Axis Bt40/50 Cnc Milling Large Cnc Vertical Machine Center with Metal
Introduction
VMC1270 China 3/4/5 axis bt40/50 milling large cnc vertical mahine center with metal Economics high precision cnc milling machine history center is my company introduction of international advanced technology, its own research and development production of a new generation of Cnc machine tool, the machine tool widely used mold, medical equipment, machinery manufacturing industry such as body parts, such as shell parts, disc parts processing.The machine tool is equipped with automatic lubricating system and cooling system.
VMC1270 machining center is a cost-effective vertical machining center developed by our company for small hardware parts and products. This machine tool has the advantages of strong structural rigidity, stable precision, low failure rate and good reliability. It is a sharp tool for small product processing.
Specification
| Item | VMC1270 |
| Size of worktable(length×width)mm | 1400×700mm |
| T slot (mm) | 5-18×115 |
| Max loading weight on worktable | 1000kg |
| X-Axis travel(mm) | 1200 |
| Y-Axis travel(mm) | 700 |
| Z-Axis travel(mm) | 700 |
| Distance between spindle nose and table | 130-830mm |
| Distance between spindle center and column(mm) | 767 |
| Spindle taper | BT50 |
| Max. spindle speed( rpm) | 8000/10000/12000 |
| Spindle motor power(Kw) | 11/15kw |
| Rapid feeding speed: X,Y,Z axis m/min | 16/16/16 (24/24//24 liner guidway) |
| Fast cutting speed m /min | 10m/min |
| Positional accuracy | ±0.005 mm |
| Repeat positional accuracy | ±0.003 mm |
| Auto Tool changer type | 16 tools head type tool changer(optional 24 arm type auto tool changer) |
| Max. tool length | 300mm |
| Max. Tool diameter | Φ80(adjacent tool)/φ150(not adjacent tool) |
| Max.tool weight | 8kg |
| Tool changing time(tool-to-tool) | 7sec |
| Air pressure | 0.6 Mpa |
| Machine weight | 9000KG |
| Overall sizse(mm) | 3800*3000*2650 |
