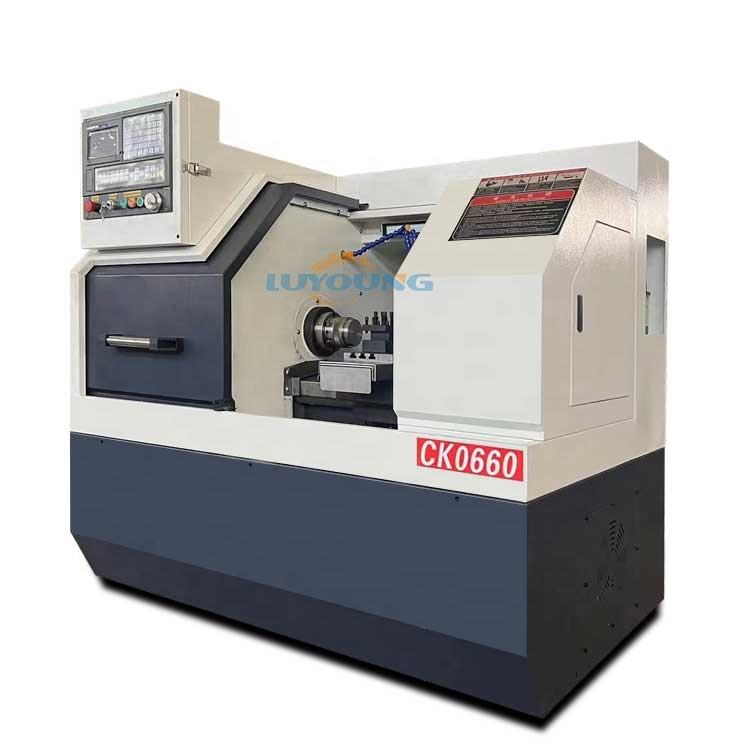

Chinese Metal Lathe Cnc Lathe Manufacturer Ck0660 CncLathe Machine Price
No content added
Introduction
Chinese metal lathe cnc lathe manufacturer ck0660 cnc mini lathe machine price using the GSK controller system to realize the Two – axis Control .The use of FANUC, Siemens, KND and other systems; with less noise, high precision, excellent performance characteristics, the CNC machine tools using mechanical and electrical integration design. Beautiful appearance, reasonable structure, wide range of uses, easy to operate. The machine can be automatically controlled, can automatically process a variety of parts of the first round, end, slot, any cone, spherical, and a variety of British and English cylindrical, tapered thread.
| Items | CK0660 |
| Spindle bore | Φ60mm |
| Max. swing over bed | Φ300mm |
| Max. swing over carriage | φ130mm |
| Max length of work piece | 240mm |
| X- axis max motion traveling schedule | 200mm |
| X-axis fast moving speed | 6000mm/min |
| Z- axis fast moving speed | 8000 mm/min |
| X-axis feed rates | 1~2000mm/min |
| Z- axis feed rates | 1~1800mm/min |
| Range of spindle speed | 50~2500rpm |
| X/Z-axis repeatability (mm) | 0.012/0.013 |
| Stations of tool carrier | gang-type tool holder |
| Power of the main drive motor | 3KW |
| Overall dimensions(L×W×H) | 1550×920×1450 |
| 900Net weight | 900 kg |
| Standard configuration: | Option configuration |

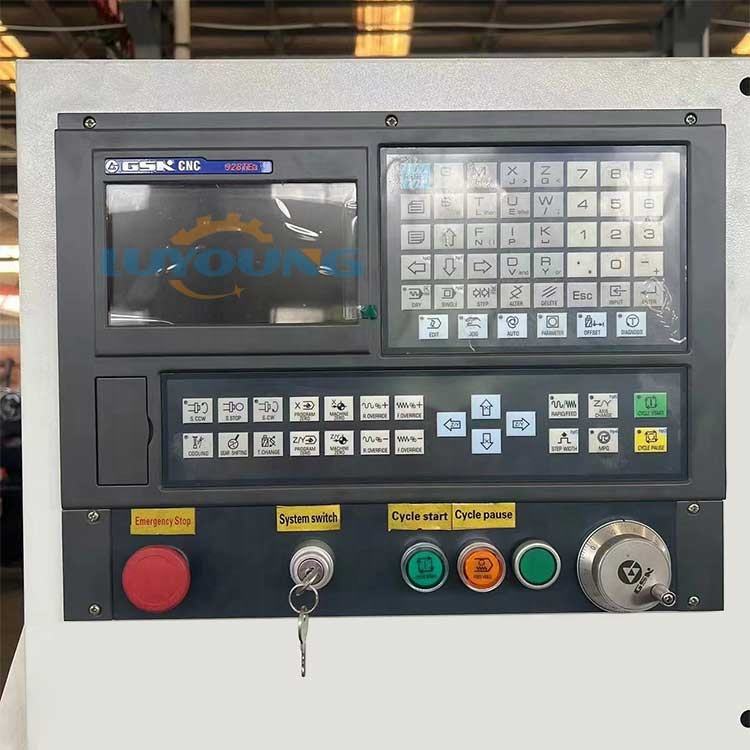

| GSK 928TD-L | KND/SIEMENS/FANUC Controller system |
| Pneumatic spring collet(2pcs free) | 4 station electric tool holder |

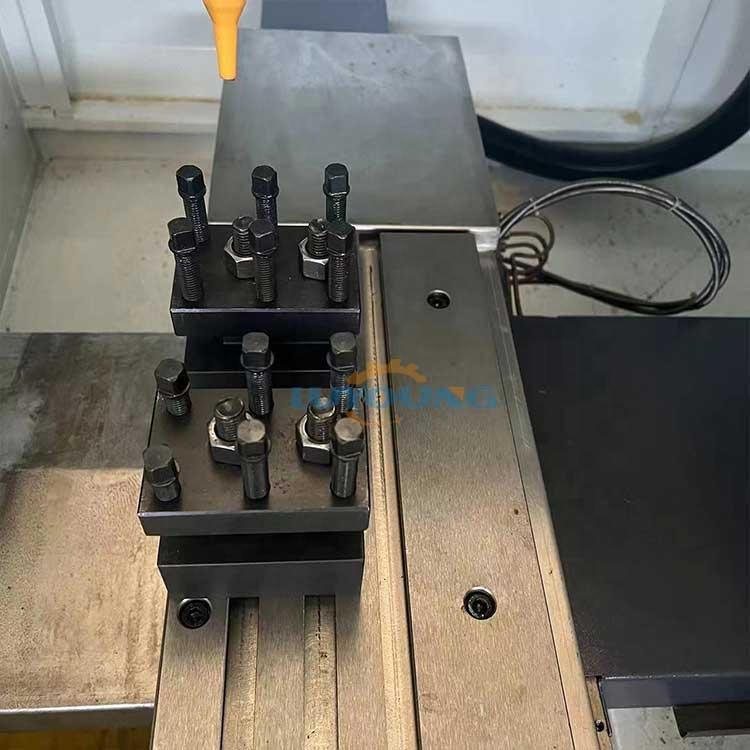

| Gang type tool holder | Auto feeder system |
| Auto lubrication system | Pneumatic chuck |
| Lighting system | Hydraulic chuck |
| Cooling system | Trailstock |
| 380V 3 phase(if your local have special request pls let us know) | |
