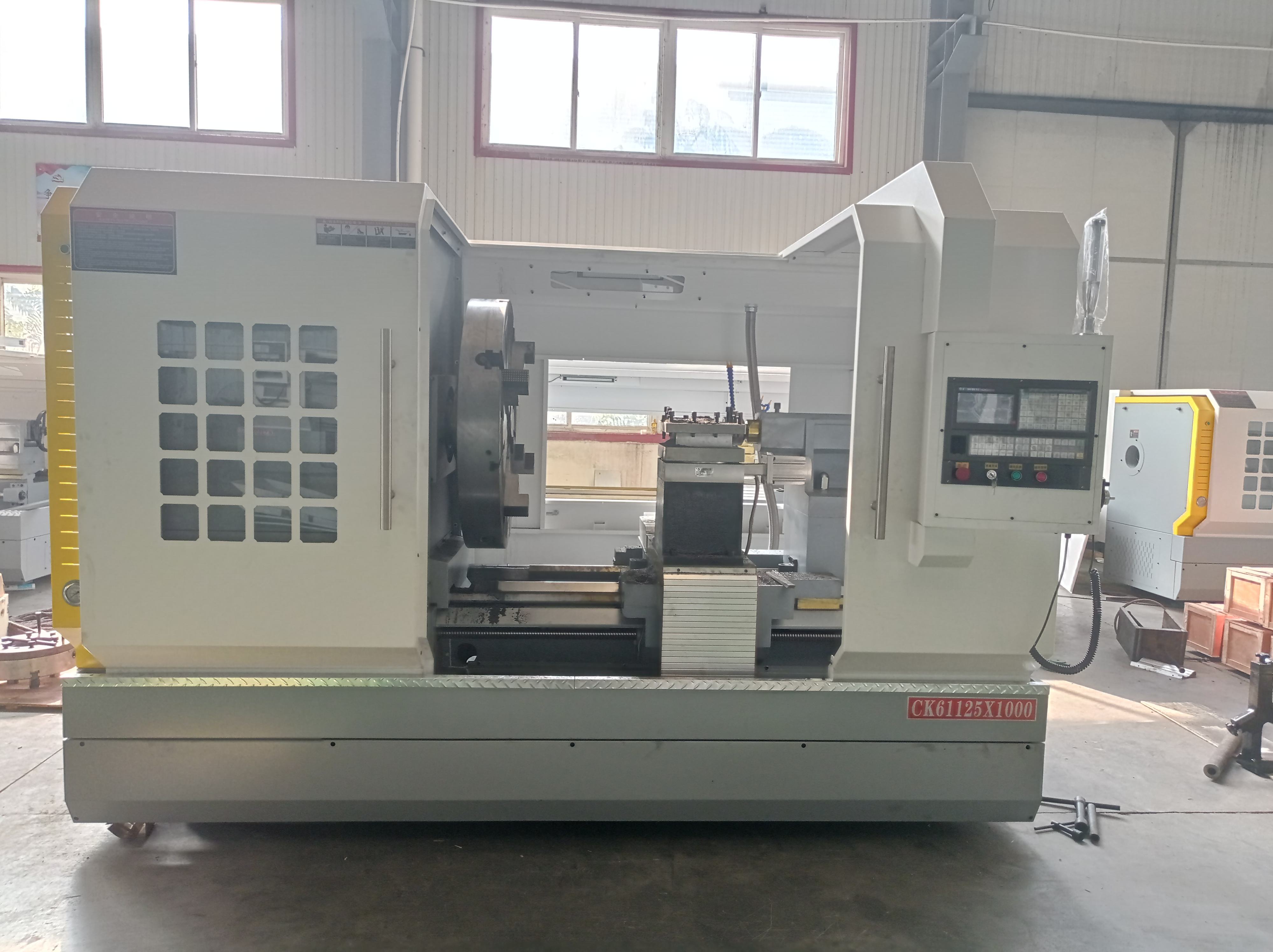

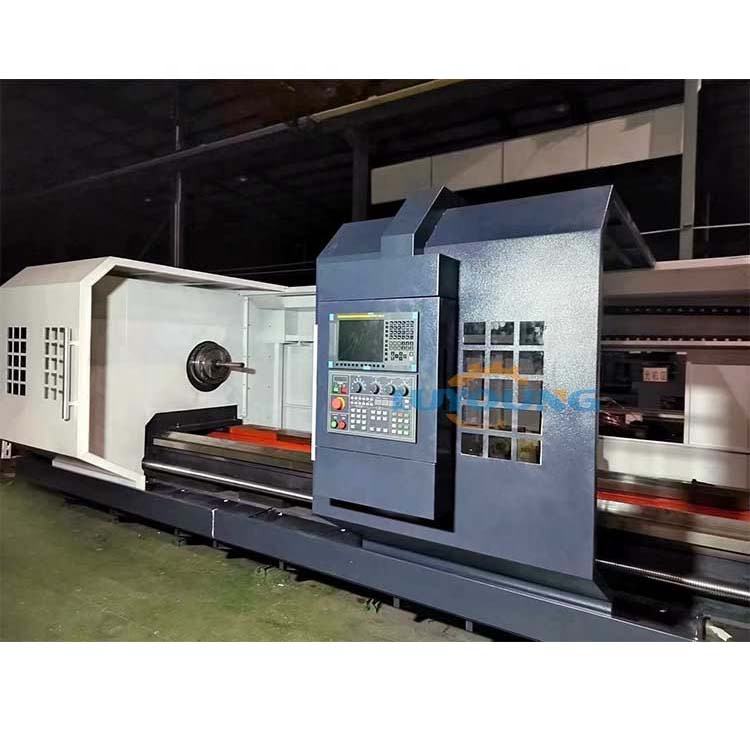

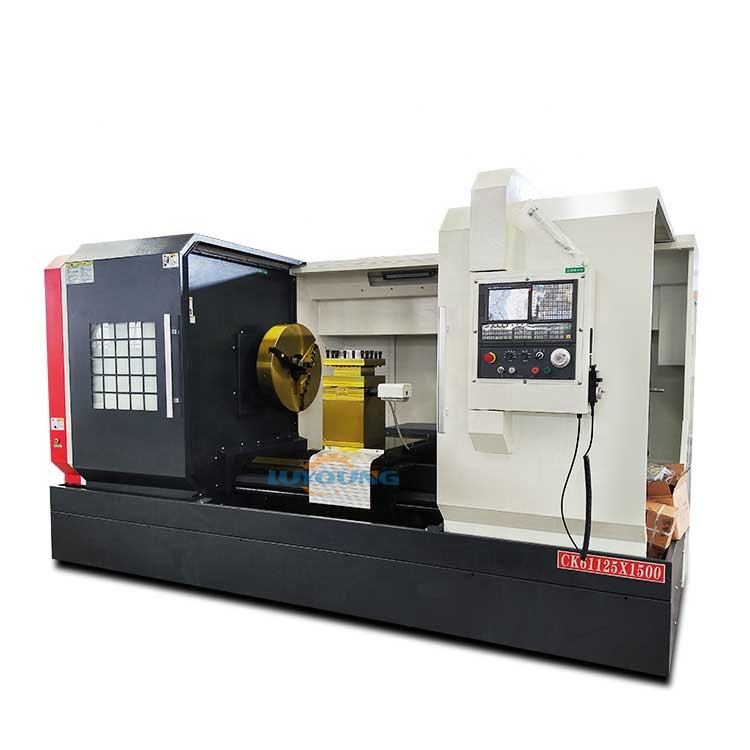

Ck61125 Cnc Lathe Metallurgical Turning Horizontal Lathe Machine
No content added
Introduction
ck61125 cnc lathe universal metallurgical turning horizontal lathe machine, high-efficiency automated machine tools, the whole machine with integrated protection structure, beautiful
appearance. Mainly used for complex shape parts or high precision parts processing, can automatically complete internal and external Round surface, conical cotton, round face, end face, a variety of threads, drilling, hinge, boring and other turning. The machine is tested in strict accordance with the inspection procedure. Each machine adopts laser interferometer to detect X and Z axis positioning accuracy and repeat positioning accuracy to ensure the accuracy and reliability of the machine.
| Item | CK61125*1500 | CK61125*2000 | CK61125*3000 |
| Max. swing over bed (mm) | Φ1250 | Φ1250 | Φ1250 |
| Max. swing dia. over cross slide(mm) | Φ970 | Φ970 | Φ970 |
| Max.processing length(mm) | 1500 | 2000 | 3000 |
| Form | Three gears No grade to change frequency | ||
| Number of spindle speed | No grade | ||
| Range of spindle speed(r/min) | 6-500 rpm | ||
| The spindle terminal structure | C11 | ||
| Diameter of spindle bore (mm) | φ130 | ||
| The taper of spindle front-end | (Metric)120 1:20 | ||
| Power of main motor (KW) | 15KW | ||
| Max.travel of tool post (mm) | X:530 Z:1700/X:530 Z:2300/X:530 Z:3300 | ||
| Fast moving feed speed (mm/min) | X:4000 Z:5000 | ||
| Resetting accuracy(mm) | X:0.012 Z:0.016 | ||
| Processing accuracy(mm) | IT6-IT7 | ||
| Surface roughness | Ra1.6 | ||
| Sleeve diameter of tailstock (mm) | φ100 | ||
| Sleeve travel of tailstock (mm) | 250 | ||
| Cone hole taper of tailstock’s sleeve | MT6 | ||
| Standard configuration | Four-station vertical electrical knife rest | ||
| Restting accuracy (mm) | 0.01 | ||
| Length of section of knife handle (mm) | 30×30 | 30×30 | 30×30 |
| Length*width*height | 3700×1920×1990 | 4700×1920×1990 | 5700×1920×1990 |
| Net weight (Kg) | 6500 | 8000 | 9000 |
