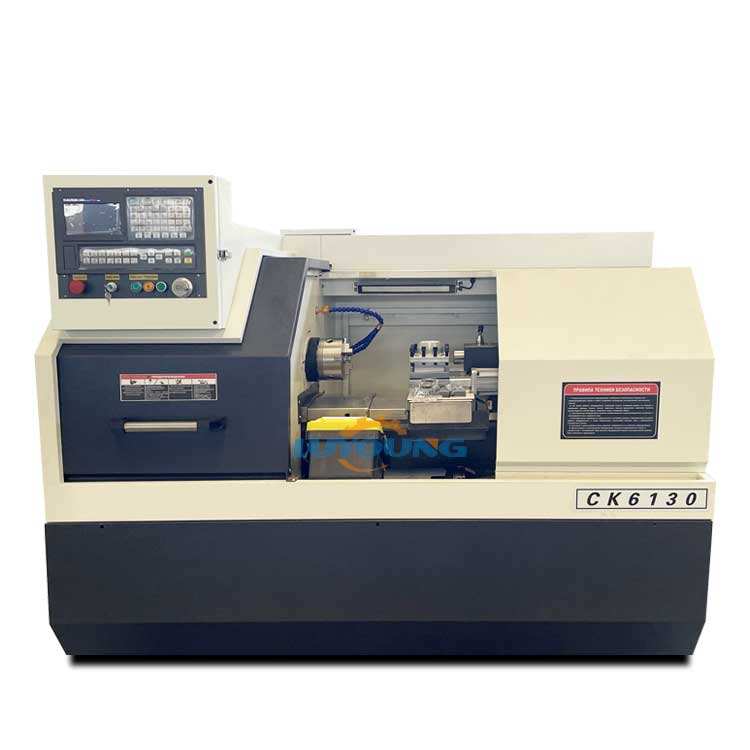

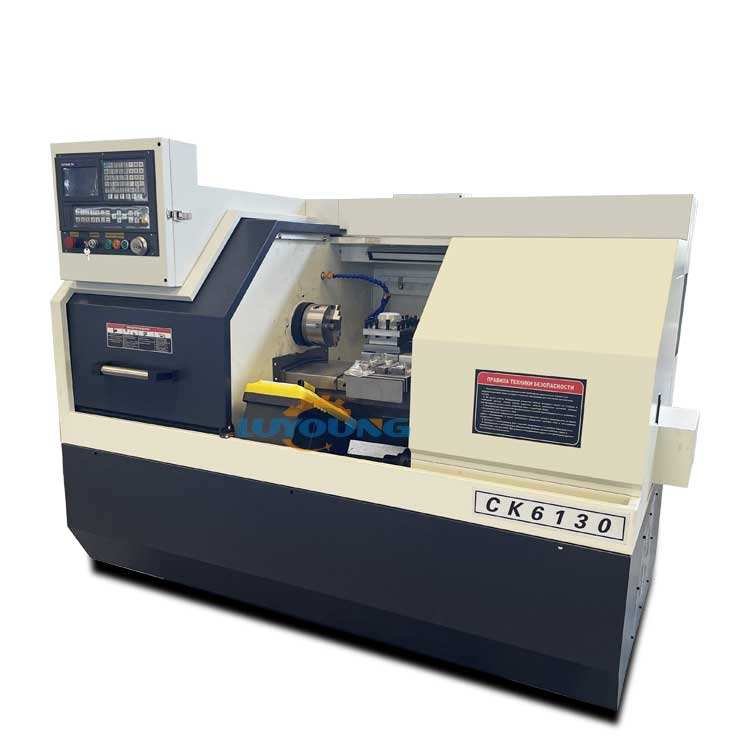

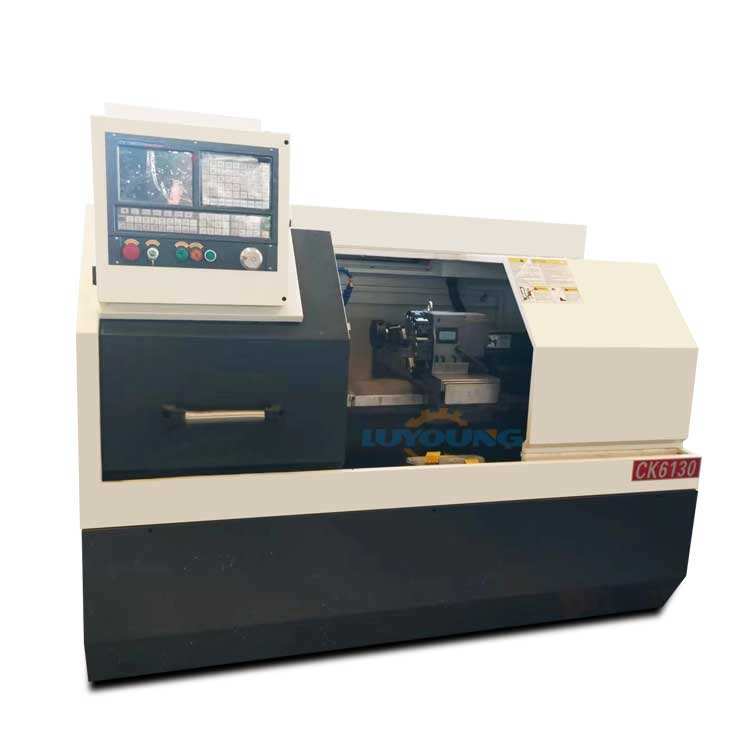

Ck6130 Flat Bed Gsk Metal China Small Cnc Lathe Machine with CE
No content added
Introduction
ck6130 flat bed gsk metal china small cnc lathe machine with CE machine uses the design of mechanical and electrical integration, generous appearance beautiful, reasonable structure, easy operation. The machine adopts the integral bed foot, the stability is better. Wear-resistant cast iron after ultra-audio quenching treatment, to ensure the accuracy of the equipment and stability. The fully enclosed cover ensures that a drop of water does not leak out of the machine.Specification of ck6130 flat bed gsk metal china small cnc lathe machine with CE
| Flat Bed Small CNC Lathe Machine CK6130 | |
| Item | CK6130 |
| Max. swing dia. over bed | 300mm |
| Max. swing dia. over cross slide | 150mm |
| Max. processing length | 400mm(collet) |
| Dia. of spindle hole | 48mm |
| Through hole dia. of drawing pipe | 41mm |
| Spindle speed | 150-2500rpm |
| Tool holder | gang type tool holder |
| Tool bar section | 20×20 16X16mm |
| Main motor power | 4kw |
| X/Z axis travel stoke(mm) | 300/380 |
| X/Z axis fast feeding speed | 8/10 m/min |
| X/Z axis position accuracy(mm) | 0.01/0.015 |
| X/Z-axis repeatability(mm) | 0.012/0.013 |
| Tailstock sleeve dia. | 60mm |
| Tailstock sleeve travel | 100mm |
| Tailstock taper | MT4 |
| Dimension | 1750X1200X1570 |
| weight | 1220kg |
| Configuration: | Optional configuration: |
| GSK 928TD-L | Hydraulic chuck or collet |

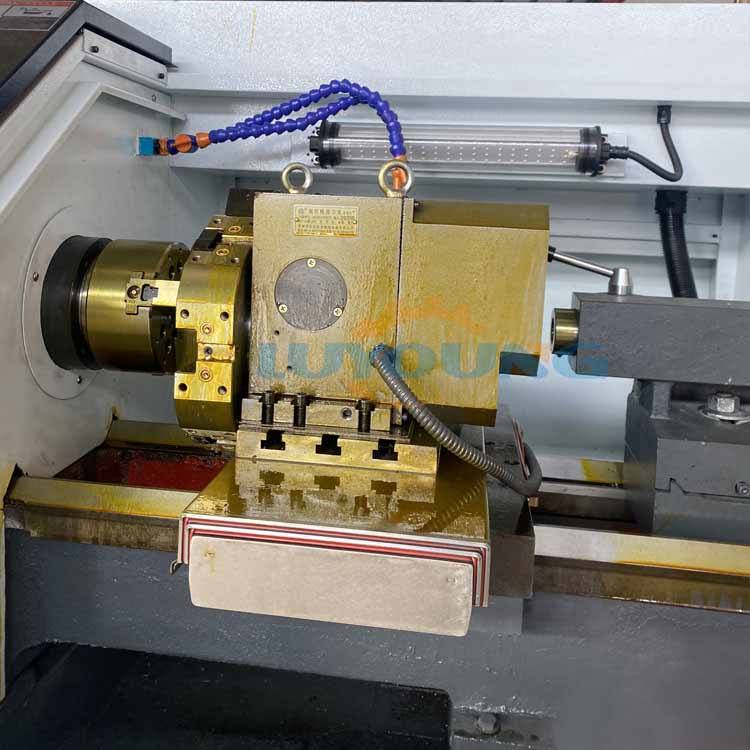

| Auto lubrication system | 4 station electric tool holder |
| Lighting system | 6 station electric tool holder |
| Cooling system | |
| Pneumatic collet | |
| 380V 3 phase(if your local have special request pls let us know | |
