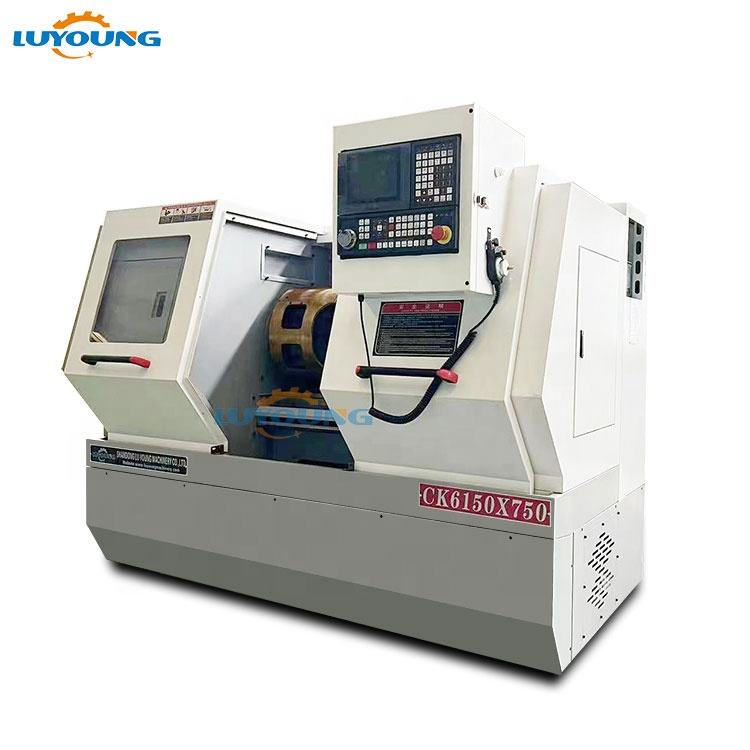

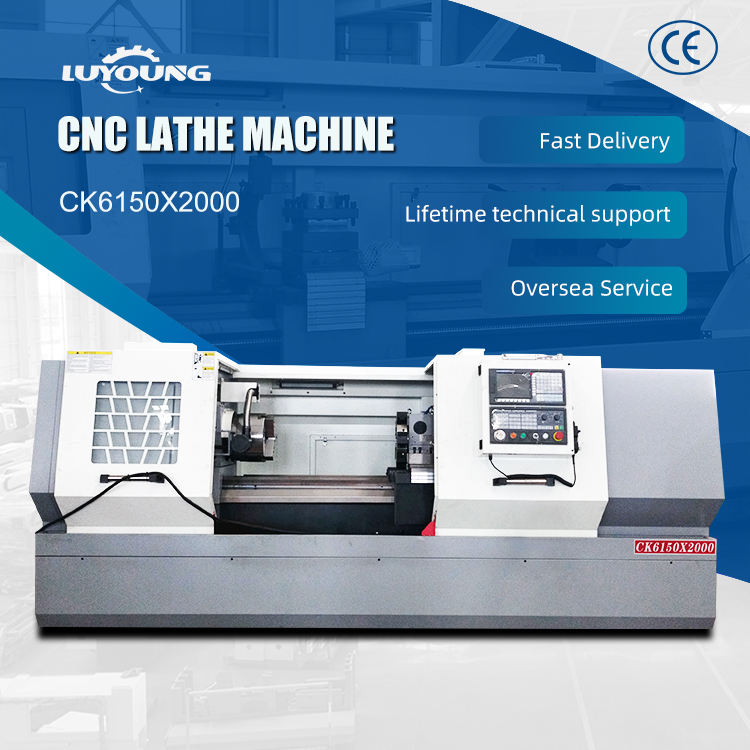

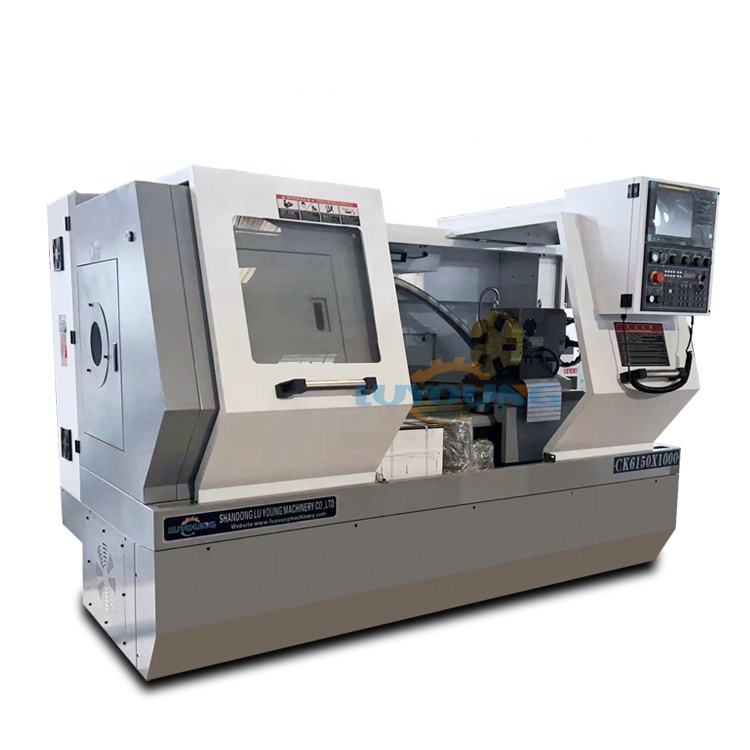

Ck6150 Low Priced Turning Gsk Flat Bed Cnc Lathe Machine for Metal
Introduction
ck6150 low priced turning gsk flat bed cnc lathe machine for metal is a high-precision, high-efficiency automated machine tools, the whole machine with integrated protection structure, beautiful appearance. Mainly used for complex shape parts or high precision parts processing, can automatically complete internal and external Round surface, conical cotton, round face,end face, a variety of threads, drilling, hinge, boring and other turning. The machine is tested in strict accordance with the inspection procedure. Each machine adopts laser interferometer to detect X and Z axis positioning accuracy and repeat positioning accuracy to ensure the accuracy and reliability of the machine.
| Item | CK6150A | ck6150B |
| Max. swing dia. over bed | Φ500mm | Φ500mm |
| Max. swing dia. over cross slide | Φ280mm | Φ280mm |
| Processing length | 750/1000/1500/2000mm | |
| Dia. of spindle | Φ82mm | |
| Spindle speed step | step-less | Three gear speed manual change,frequency conversion stepless |
| Spindle speed | 14-1500 rpm | 30-150、100-500、 320-1600rpm |
| Taper of spindle bore | 1:20/Φ90 | |
| Spindle nose | Type of spindle head D-8 | |
| Tool holder | 4 station electric tool post | |
| Tool bar section | 25X25mm | |
| Main motor power | 7.5KW | |
| X/Z axis position accuracy | 0.02/0.025mm | |
| X/Z-axis repeatability(mm) | 0.01/0.012mm | |
| X/Z axis fast feeding speed | 8/10 M/MIN | |
| Tailstock sleeve travel | 150mm | |
| Tailstock taper | MT5 | |
| Dimension | 2410/2660/3160 ×1560×1730mm | |
| Net weight | 2800/3200/3500kg | |
Standard configuration:
ck6150 low priced turning gsk flat bed cnc lathe machine for metal

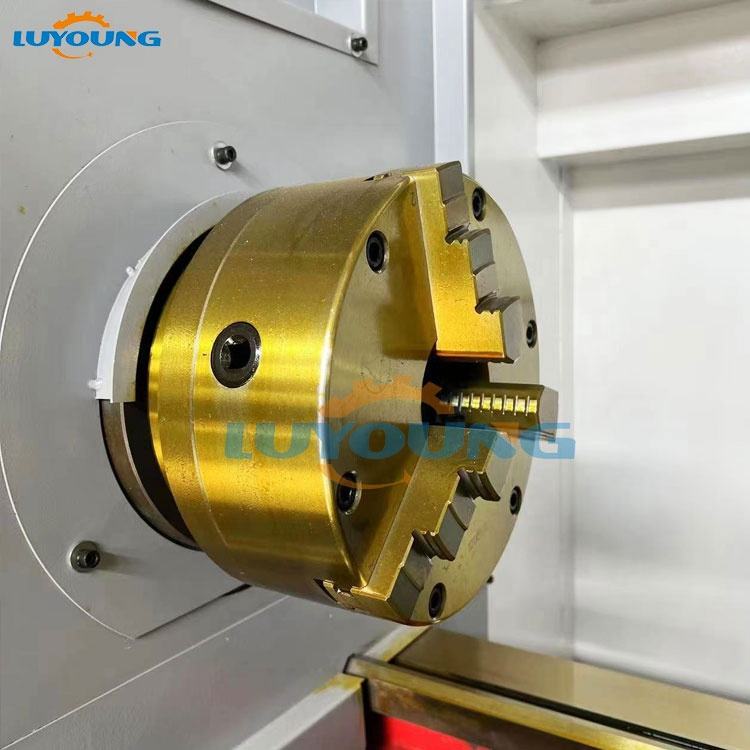

1.GSK928 CNC Controller 2.3 jaw manual chuck
3.4 electric tool holder
4.Auto lubrication system
5.lighting system
6.cooling system
7.one-piece bed casting
8.manual tailstock
Optional configuration
1.Siemens,Fanuc cnc controller system2.pneumatic chuck,hydraulic chuck
3.pneumatic tailstock,hydraulic tailstock
4.6 staion tool turret,8staiton tool turret
5.Auto feeder system
6.Chip conveyor
7.Centre -rest
8.Follow-rest
