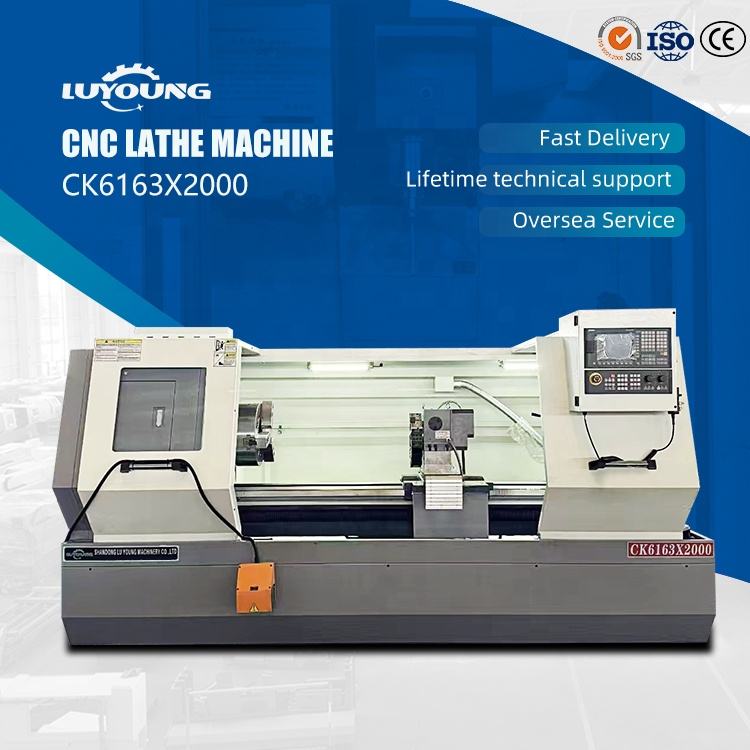

CK6163 China Factory Price Flat Bed Heavy Duty Metal Big Bore Cnc Lathes for Sale
No content added
Introduction
CK6163 china factory price flat bed heavy duty metal big bore cnc lathes for sale is characterized by high technical content, rigidity, precision and stability, energy efficient, high power. It is widely used in wind power, petroleum, chemical,
papermaking, textile, mining, and so on. It is widely used in wind power, oil, chemical industry, papermaking, textile, mining,
Ship, aviation, rubber, mold, auto parts, processing such as steam turbine rotor, belt, generator, turbine rotor, machine spindle, hoist, and so on machinery manufacturing industry.
| CK6163 china factory price flat bed heavy duty metal big bore cnc lathes for sale | ||
| Max. swing over bed (mm) | Φ630 | Φ630 |
| Max. swing dia. over cross slide(mm) | Φ350 | Φ350 |
| Max.processing length(mm) | 1000 | 1500 |
| Form | Three gears No grade to change frequency | |
| Number of spindle speed | No grade | |
| Range of spindle speed(r/min) | 25-850 rpm | |
| The spindle terminal structure | C11 | |
| Diameter of spindle bore (mm) | φ105 | |
| The taper of spindle front-end | (Metric)120 1:20 | |
| Power of main motor (KW) | 11KW | |
| Max.travel of tool post (mm) | X:530 Z:1200 | |
| Fast moving feed speed (mm/min) | X:4000 Z:5000 | |
| Resetting accuracy(mm) | X:0.012 Z:0.016 | |
| Processing accuracy(mm) | IT6-IT7 | |
| Surface roughness | Ra1.6 | |

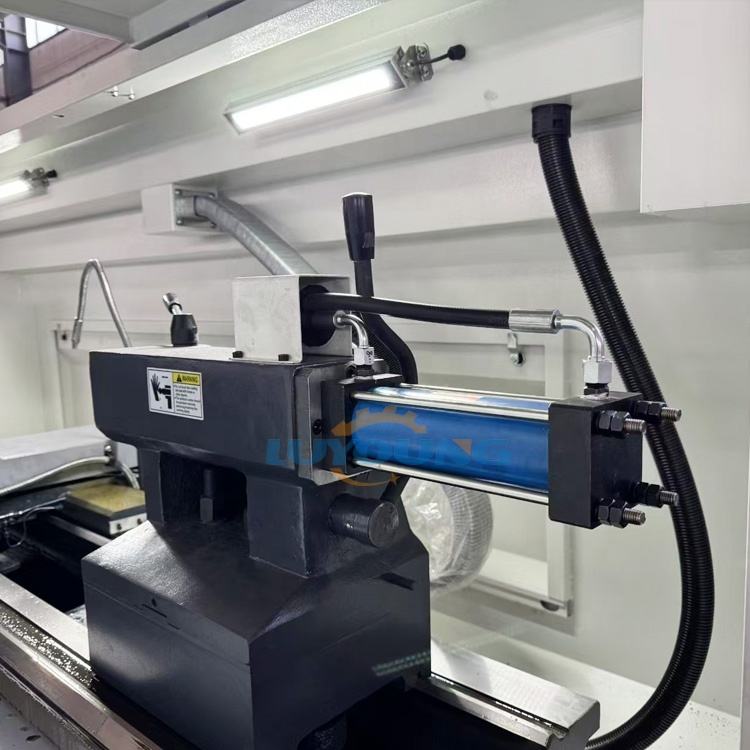

| Sleeve diameter of tailstock (mm) | φ100 | |
| Sleeve travel of tailstock (mm) | 250 | |
| Cone hole taper of tailstock’s sleeve | MT6 | |

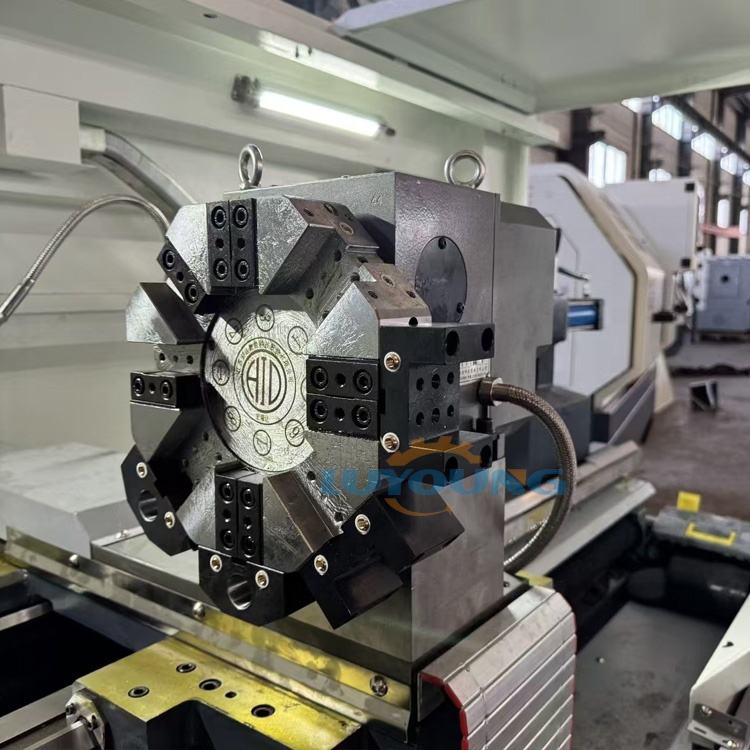

| Standard configuration | Four-station vertical electrical knife rest | |
| Restting accuracy (mm) | 0.01 | 0.01 |
| Length of section of knife handle (mm) | 30×30 | 30×30 |
| Length*width*height | 3200×1820×1780 | 3700×1820×1780 |
| Net weight (Kg) | 4100 | 4500 |
