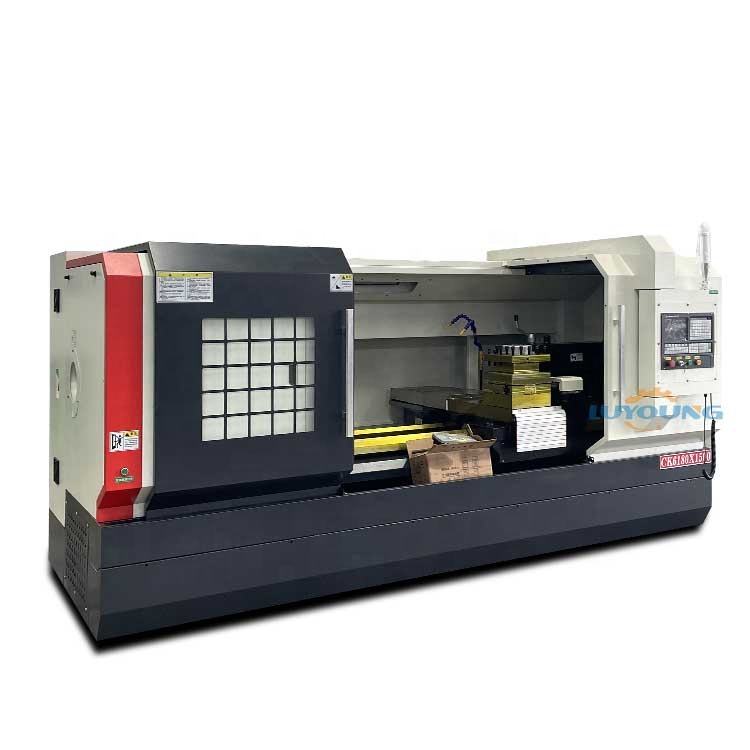

Heavy Lathe 6180*1500 2000/3000mm Horizontal Metal Cutting Lathe 1.5 Meters Lathe Machines 4/6.8 Station Electrical Tool Holder
No content added
Introduction
heavy lathe 6180*1500 2000/3000mm horizontal metal cutting lathe 1.5 meters lathe machines 4/6.8 station electrical tool holder Single Horizontal Provided tool is automatically controlled by the CNC control system to perform various inner holes, outer circles, conical surfaces, arc surfaces, and thread turning. It is especially suitable for rough and fine machining of shafts and disc parts in small and medium batches, with a degree of automation High, simple programming, high precision and other advantages
| Max. swing over bed (mm) | φ800 |
| Max. swing dia. over cross slide(mm) | φ500 |
| distance between two centers(mm) | 1000/1500/2000/3000mm |
| Form | Four gears No grade to change frequency |
| Range of spindle speed(r/min) | 25-850 rpm |
| The spindle terminal structure | C11 |
| Diameter of spindle bore (mm) | φ105 |
| The taper of spindle front-end | (Metric)120 1:20 |
| Power of main motor (KW) | 11KW |
| Processing accuracy(mm) | IT6-IT7 |
| Surface roughness | Ra1.6 |

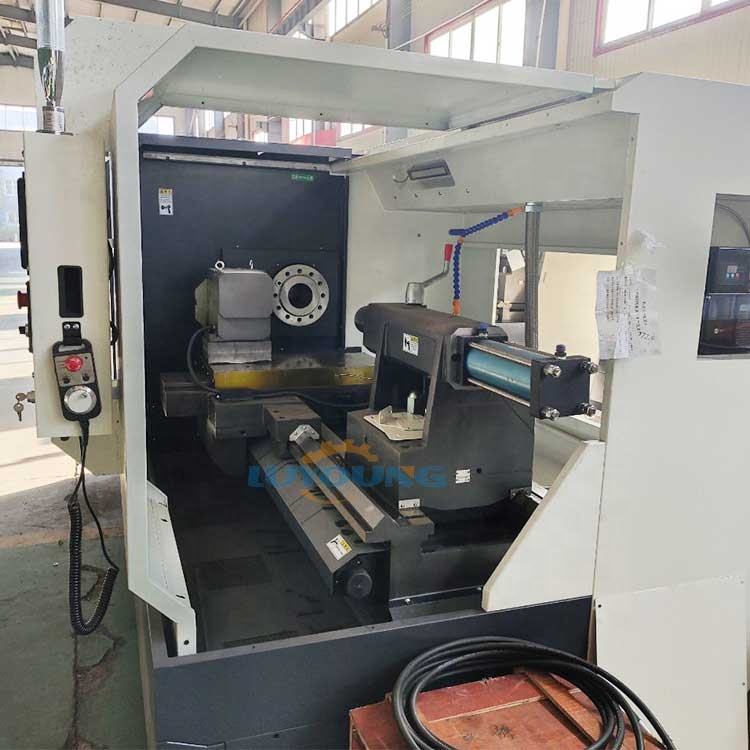

| Sleeve diameter of tailstock (mm) | φ100 |
| Sleeve travel of tailstock (mm) | 250 |
| Cone hole taper of tailstock’s sleeve | MT6 |

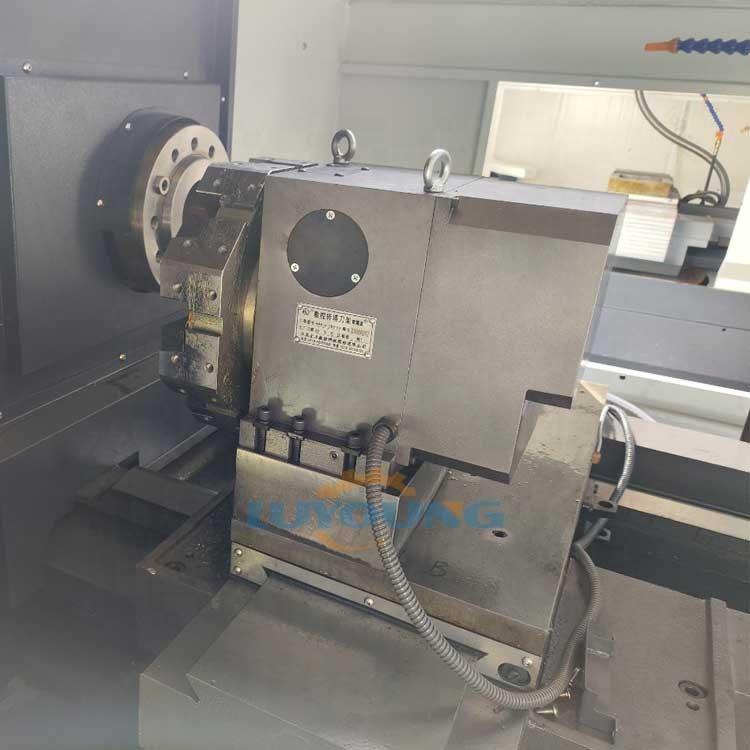

| Standard configuration | Four-station vertical electrical knife rest |
| Restting accuracy (mm) | 0.007 |
| Length of section of knife handle (mm) | 30×30 |
| Length*width*height | 3300/3800/4300/5300×1940×1800mm |
| Net weight (Kg) | 4200 |
| Standard configuration: | Option configuration: |
| GSK controller system | 12 station hydraulic servo turret |
| Manual 3 jaw chuck | Auto feeder system |
| Auto lubrication system | Pneumatic chuck |
| Lighting system | Hydrualic chuck |
| Cooling system | Chip conveyor |
| 4 station tools carrier | |
| 380V 3 phase(if your local have special request pls let us know) | |
