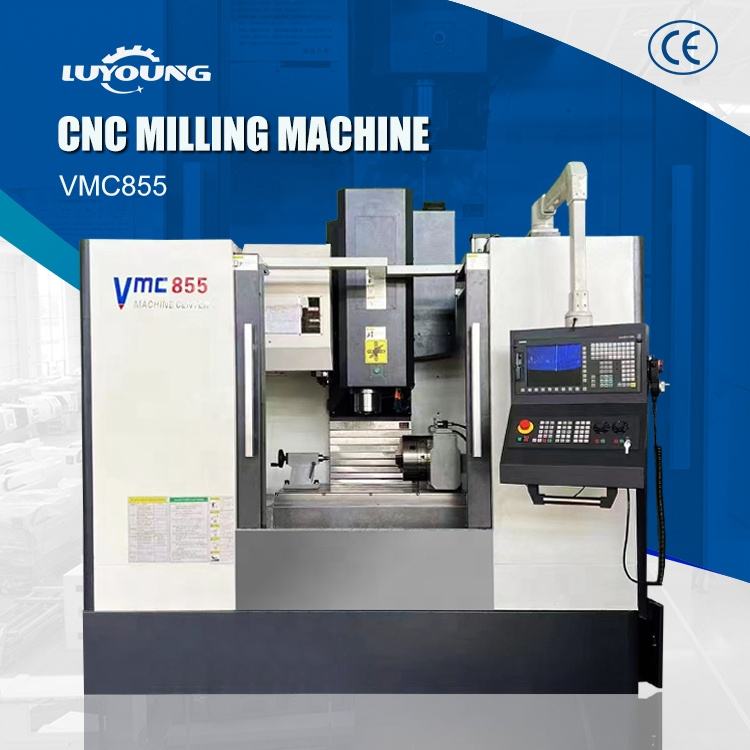

High Performance 3/4/5 Axis VMC 850/855 VMC Aluminum CNC Vertical Machine Center Machine Tool
No content added
Introduction
High performance 3/4/5 axis VMC 850/855 VMC aluminum CNC vertical machine Center Machine Toolr is easy to set up, easy to operate, easy to observe the machining situation, easy to debug the program, and widely used. About the environment: no oil and mist will be emitted, no pollution of the surrounding environment. Suitable for any oil, there is no problem of atomisation of high viscosity lubricants. Can detect whether the lubricant is normal or not. If the lubrication is not good, it can be alarmed and stopped to avoid abnormal operation of the equipment. Small oil consumption and cost saving.
| Item | VMC850 |
| Size of worktable(length×width)mm | 1000×500 |
| T slot (mm) | 5-18×100 |
| Max loading weight on worktable | 600kg |
| X-Axis travel(mm) | 800 |
| Y-Axis travel(mm) | 500 |
| Z-Axis travel(mm) | 500 |
| Distance between spindle nose and table | 105-605mm |
| Distance between spindle center and column(mm) | 550 |
| Spindle taper | BT40-150 |
| Max. spindle speed( rpm) | 8000 |
| Spindle motor power(Kw) | 7.5/11kw |
| Rapid feeding speed: X,Y,Z axis m/min | 16/16/16 (24/24/24 liner guidway) |
| Fast cutting speed m /min | 10m/min |
| Positional accuracy | ±0.005 mm |
| Repeat positional accuracy | ±0.003 mm |

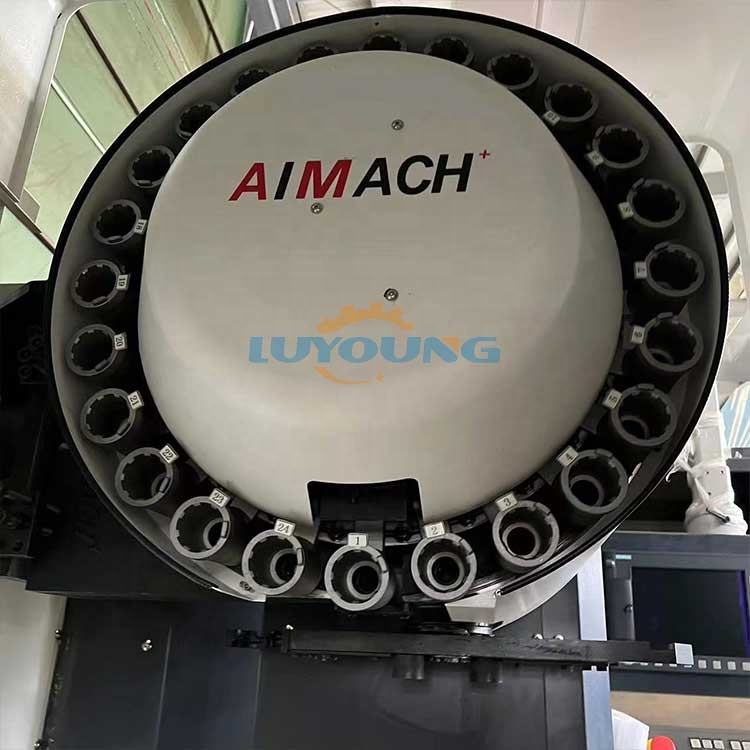

| Auto Tool changer type | 16 tools head type tool changer(optional 24 arm type auto tool changer) |
| Max. tool length | 300mm |
| Max. Tool diameter | Φ80(adjacent tool)/φ150(not adjacent tool) |
| Max.tool weight | 8kg |
| Tool changing time(tool-to-tool) | 7sec |
| Air pressure | 0.6 Mpa |
| Machine weight | 5500KG |
| Overall sizse(mm) | 2600*2300*2300 |
