High Precision 3/4/5 Axis Highspeed Cutting Cnc Machine Center VMC650/640 Milling Machine
No content added
Introduction
Vertical machine center
Vertical Machining, also known as milling, relies on rotary cutters to remove metal from a workpiece. Vertical machining occurs on
a vertical machining center (VMC), which employs a spindle with a vertical orientation. With a vertically oriented spindle, tools
stick straight down from the tool holder, and often cut across the top of a workpiece.
| Item | VMC640 | |||||
| Size of worktable(length×width)mm | 600*300 | |||||
| T slot (mm) | 5-18×100 | |||||
| Max loading weight on worktable | 400 | |||||
| X-Axis travel(mm) | 600 | |||||
| Y-Axis travel(mm) | 450 | |||||
| Z-Axis travel(mm) | 450 | |||||
| Distance between spindle nose and table | 120-670 | |||||
| Distance between spindle center and column(mm) | 600 | |||||
| Spindle taper | BT40 | |||||
| Max. spindle speed( rpm) | 8000/10000/12000 | |||||
| Spindle motor power(Kw) | 5.5/7.5kw | |||||
| Rapid feeding speed: X,Y,Z axis m/min | (24/24//24 liner guidway) | |||||
| Fast cutting speed m /min | 20m/min | |||||
| Positional accuracy | ±0.01 mm | |||||
| Repeat positional accuracy | ±0.005mm | |||||

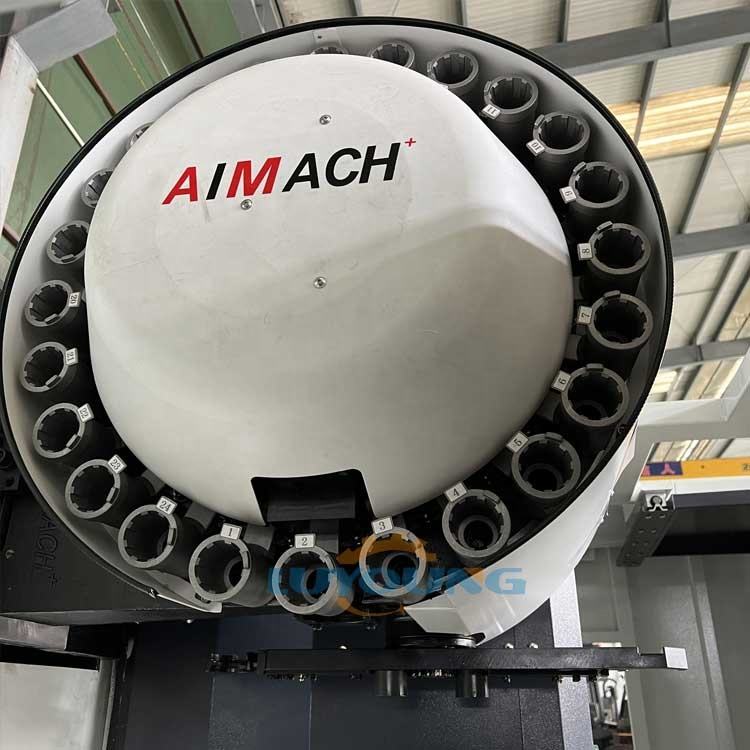

| Auto Tool changer type | 16arm type auto tool changer | |||||
| Max. tool length | 300mm | |||||
| Max. Tool diameter | Φ80(adjacent tool)/φ150(not adjacent tool) | |||||
| Max.tool weight | 8kg | |||||
| Tool changing time(tool-to-tool) | 7sec | |||||
| Air pressure | 0.6 Mpa | |||||
| Machine weight | 3KG | |||||
| Overall sizse(mm) | 2280x2150x2250 | |||||
