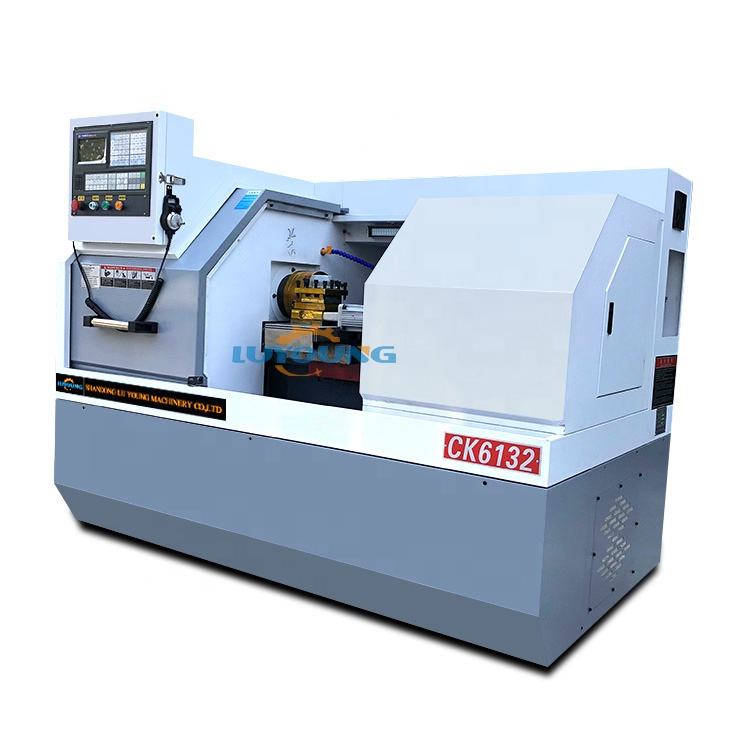

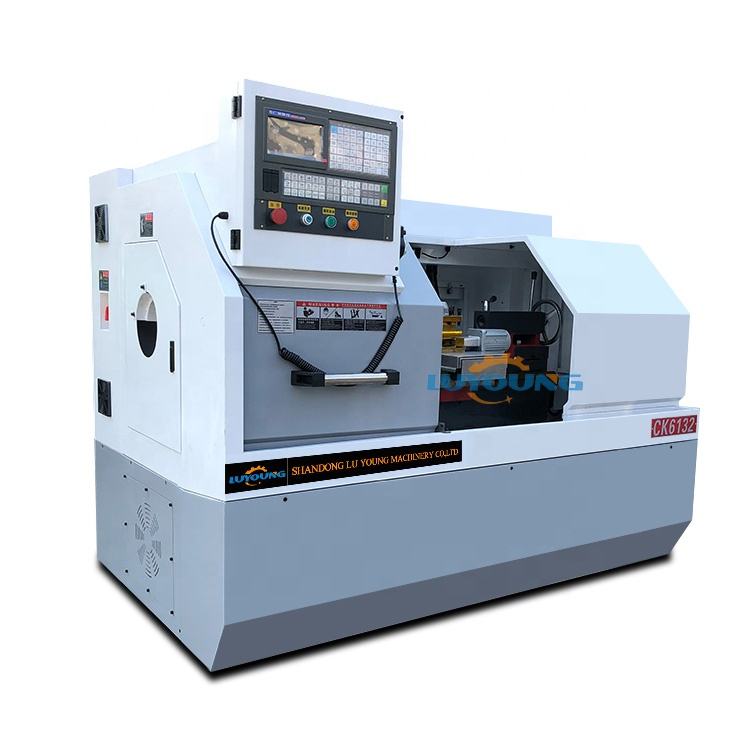

High Precision Small Simple Cnc Lathe Machine Ck6132
No content added
Introduction
The high precision small simple cnc lathe machine ck6132 uses the design of mechanical and electrical integration, generous appearance beautiful, reasonable structure, easy operation. The machine adopts the integral bed foot, the stability is better. Wear-resistant cast iron after ultra-audio quenching treatment, to ensure the accuracy of the equipment and stability. The fully enclosed cover ensures that a drop of water does not leak out of the machine.
| Item | CK6132 |
| Max. swing dia. over bed | 320mm |
| Max. swing dia. over cross slide | 150mm |
| Max. processing length | 450mm |
| Dia. of spindle | 48mm |
| Spindle taper | MT5 |
| Spindle speed | 150-2500mm |

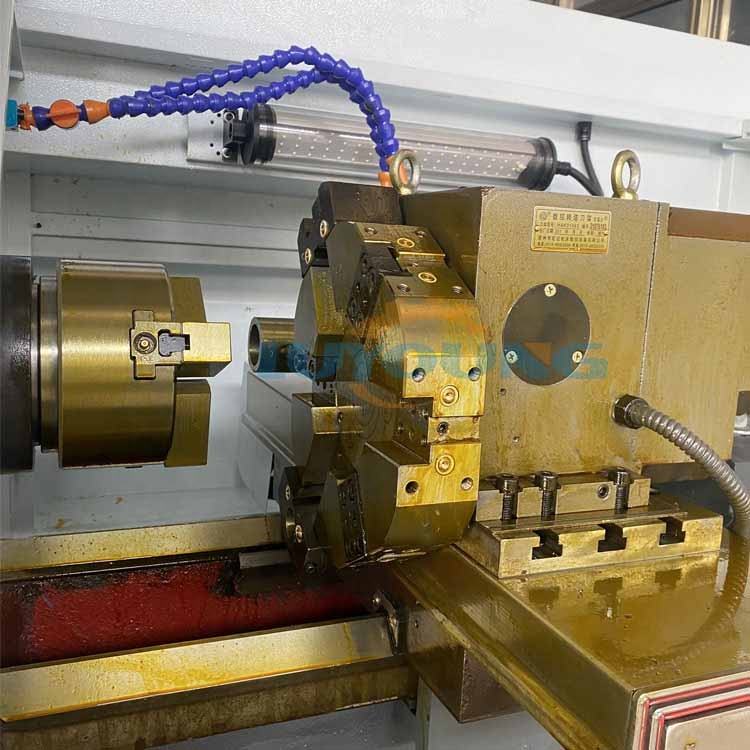

| Tool holder | 4 station or gang tool |
| Tool bar section | 20X20 mm |
| Main motor power | 4kw |
| X/Z axis travel/ stoke | 310/450 |
| X/Z axis fast feeding speed | 6/8 M/MIN |
| Tailstock sleeve travel | 100mm |
| X/Z axis position accuracy(mm) | 0.01/0.015 |
| X/Z-axis repeatability(mm) | 0.012/0.013 |
| Tailstock taper | MT3 |
| Dimension | 1820mm×1100 mm×1550mm |
| weight | 1200kg |
| Standard configuration: | Option configuration: |
| GSK 928 | 4/6 /8 station electrice tool holder |
| Pneumatic collet | Auto feeder system |
| Auto lubrication system | Pneumatic chuck |
| Lighting system | Hydrualic chuck |
| Cooling system | |
| gang tool | |
| 380V 3 phase(if your local have special request pls let us know) | |
