Vmc2010 Cnc Milling Machine Factory Price Automatic Tool Change 3/4/5 Axis Cnc Mill Machine
No content added
Introduction

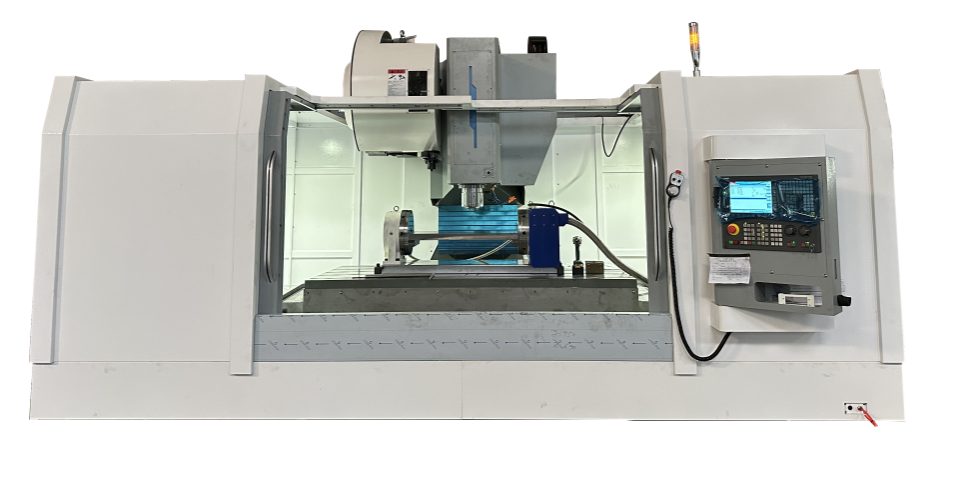

The vmc2010 cnc milling machine factory price automatic tool change 3/4/5 axis cnc mill machineMain Functions of CNC Vertical Machining Center CNC vertical machining center use popular inverted T-shape column structure, it is morden machine tool with automatic tool changer and 3/4-axis CNC system. Continous & automatic milling, drilling, expanding, hinges and tapping on 4 surfaces’ machining processes after once clamped, suitable for medium batch process all kinds of flat surface, hole, complicated surfaces machining. Saving processes, shorten production cycle, improved processing accuracy, it is the ideal machining equipment for automobile; construction mechanical;
Specification
| content | name | specifications and models |
| working table | Table size | 2100mm X 1000mm |
| Maximum load-bearing of workbench | 2000KG | |
| Processing range | X-axis maximum stroke | 2000 mm |
| Y-axis maximum stroke | 1000 mm | |
| Z-axis maximum stroke | 700 mm | |

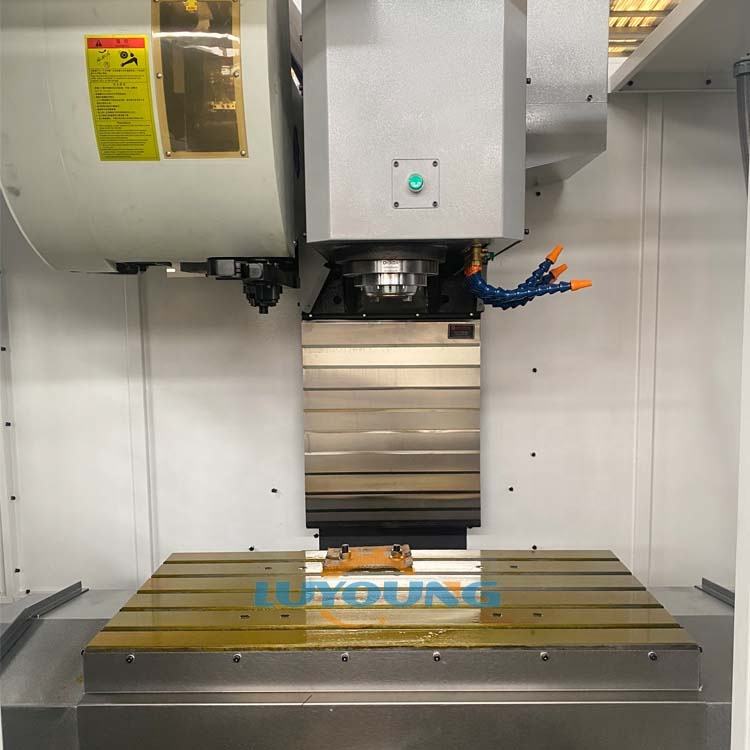

| Spindle | Kind of drive | Gear |
| Max spindle speed | 6000 r/min | |
| Maximum power of spindle motor | 15kw | |
| Minimum/maximum distance from spindle to table top | 160-860 mm | |
| Distance from spindle center to Z-axis guide surface | 1050mm | |
| Spindle taper | BT50-155 | |
| X-Y-Z axis torque | 23-28-28 | |
| feed | Fast moving | X-axis 15m/min |
| Y axis 15m/min | ||
| Z axis 10m/min | ||
| Feed speed | 1-10000 mm/min | |

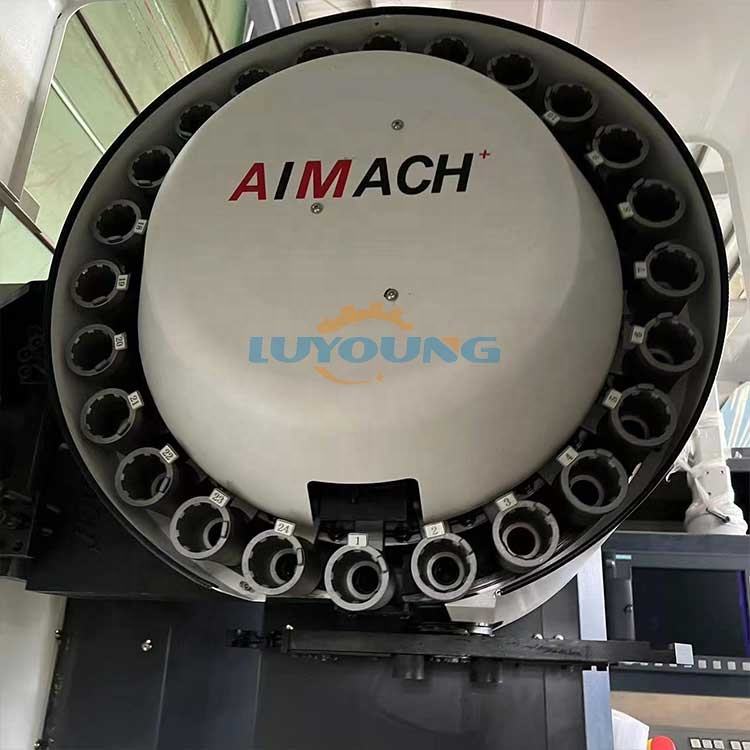

| Auto tool changer | Type | disc type |
| Tool magazine Capacity | 24 | |
| Accuracy | X /Y/Z axis positioning accuracy | 0.012 mm |
| X /Y/Z Repetitive Positioning accuracy | 0.008 mm | |
| Machine size (L × W × H) | 4800*3700*3300mm | |
| Machine tool weighs about | 14000 kg | |
