Chinese Manufacturer of High Quality MITSUBISHI CNC Machining Centers VCM 650
Introduction

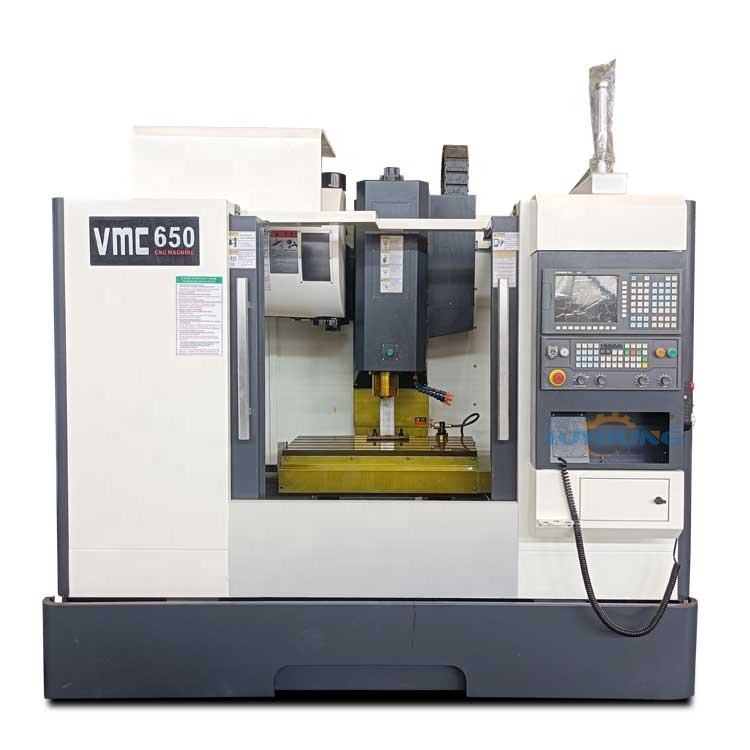

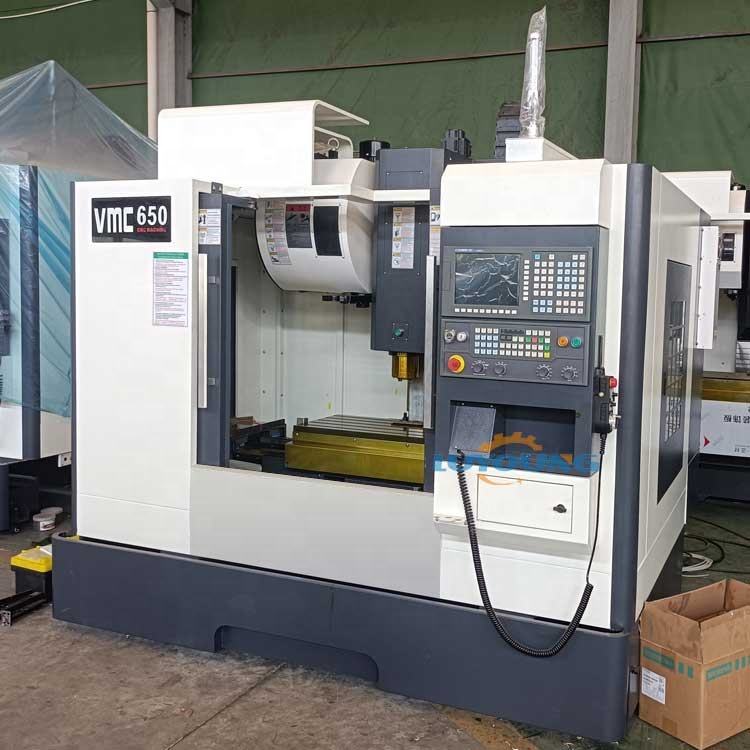

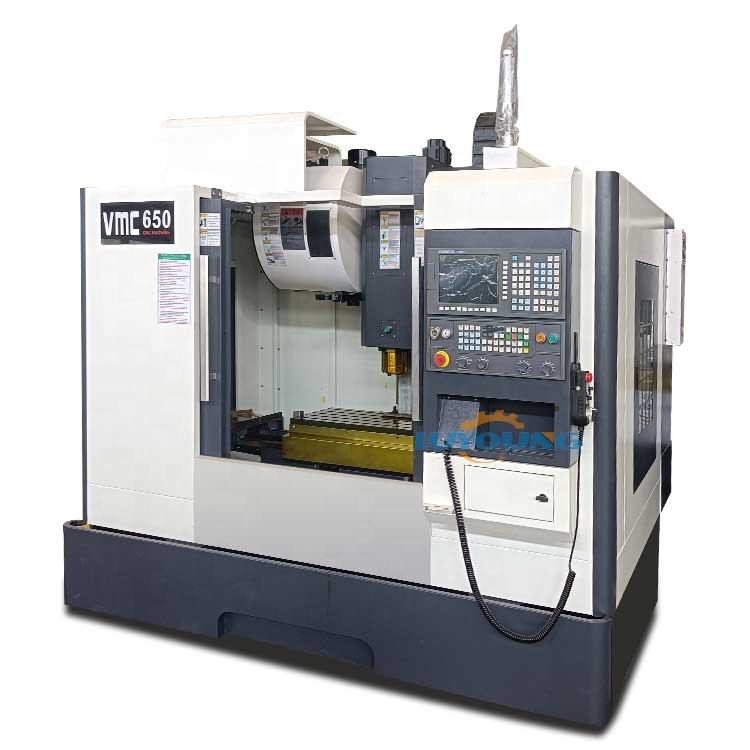

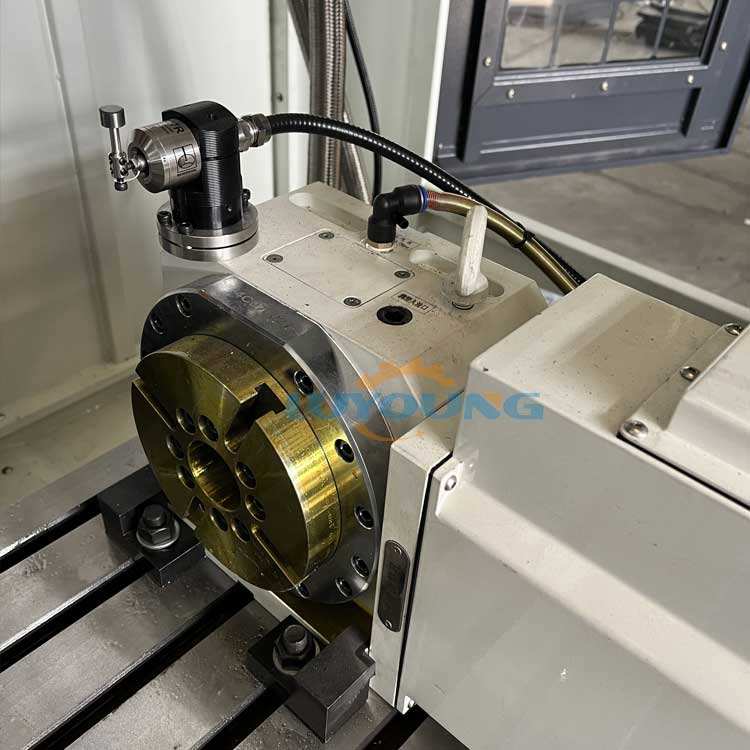

The Chinese manufacturer of high quality MITSUBISHI CNC machining centers VCM 650, CNC system, electrical control system, automatic lubricating system,cooling system, totally enclosed protective cover, automatic chip removal device (optional) etc.The machine has the X, Y, Z three axis linkage, in a clamping can finish milling, drilling, boring, expanding continuously, hinge, such as the internal and external screw thread processing a variety of rough and finish machining process, is suitable for processing all kinds of high precision,
working procedure, shape more complex parts, to provide users with complex parts processing and quick, perfect integration solutions.
The VMC650 of feed shaft for X, Y, Z three coordinate control,three axis through the servo motor drive, can achieve for a variety of plate, plate and shell, a complex parts, such as CAM, mold clamping, complete drilling, milling, boring, expansion, reaming, tapping and other process, are suitable for many varieties,small batch parts production, for complex, high precision parts processing and more shows its superiority.

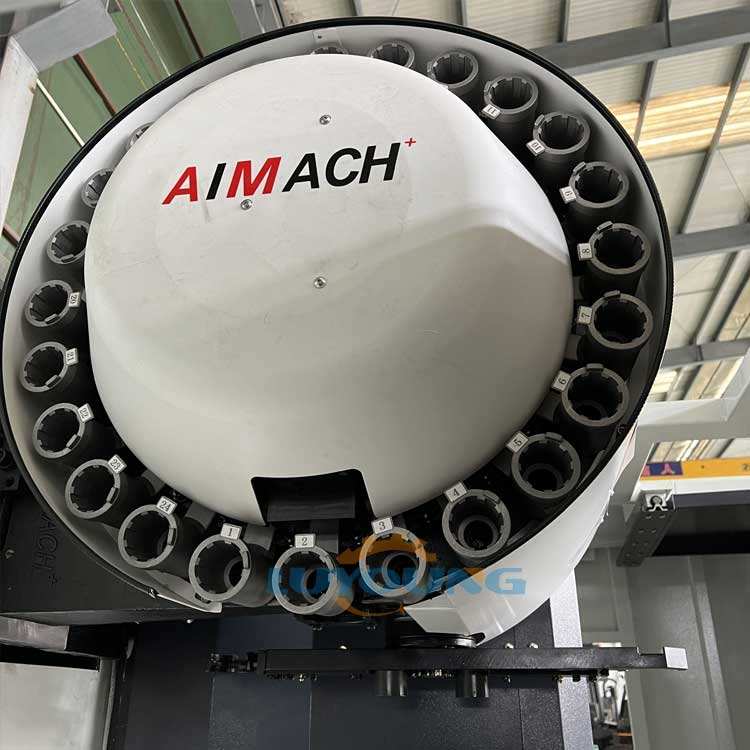

| Specification of vertical machining center | |||
| Item | VMC550L | vmc650 | VMC850 |
| Size of worktable(length×width)mm | 800×300 | 900×400mm | 1000×500 |
| T slot (mm) | 3-14-100 | 3-18-160 | 3-18-150 |
| Max loading weight on worktable | 300kg | 500kg | 600kg |
| X-Axis travel(mm) | 600 | 700 | 800 |
| Y-Axis travel(mm) | 350 | 450 | 500 |
| Z-Axis travel(mm) | 450 | 500 | 500 |
| Distance between spindle nose and table | 100 -550mm | 120-670mm | 150-650mm |
| Distance between spindle center and column(mm) | 370 | 460 | 550 |
| Spindle taper | BT40 | ||
| Max. spindle speed( rpm) | 8000/10000 | ||
| Spindle motor power(Kw) | 5.5kw | 5.5/7.5kw | 7.5/11 |
| Rapid feeding speed: X,Y,Z axis | 18/18/16 | 24/24/18mm(linear guide way) | 24(linear guide way) |
| Fast cutting speed mm /min | 5m/min | 10m/min | 16m/min |
| Positional accuracy | ±0.01 mm | ||
| Repeat positional accuracy | ±0.005 mm | ||
| Tool changer type | 16 tools head type tool changer | ||
| Max. tool length | 300mm | ||
| Max. Tool diameter | Φ80(adjacent tool)/φ150(not adjacent tool) | ||
| Max.tool weight | 8kg | ||
| Tool changing time(tool-to-tool) | 7sec | ||
| Air pressure | 0.6 Mpa | ||
| Voltage /frequency | 380 V 50HZ | ||
| Total capacity | 10KVA | ||
| Machine weight | 2700KG | 4000KG | 5100KG |
| Overall sizse(mm) | 2200×1750×2300 mm | 2350×2150×2250mm | 2700*2250*2700 |
